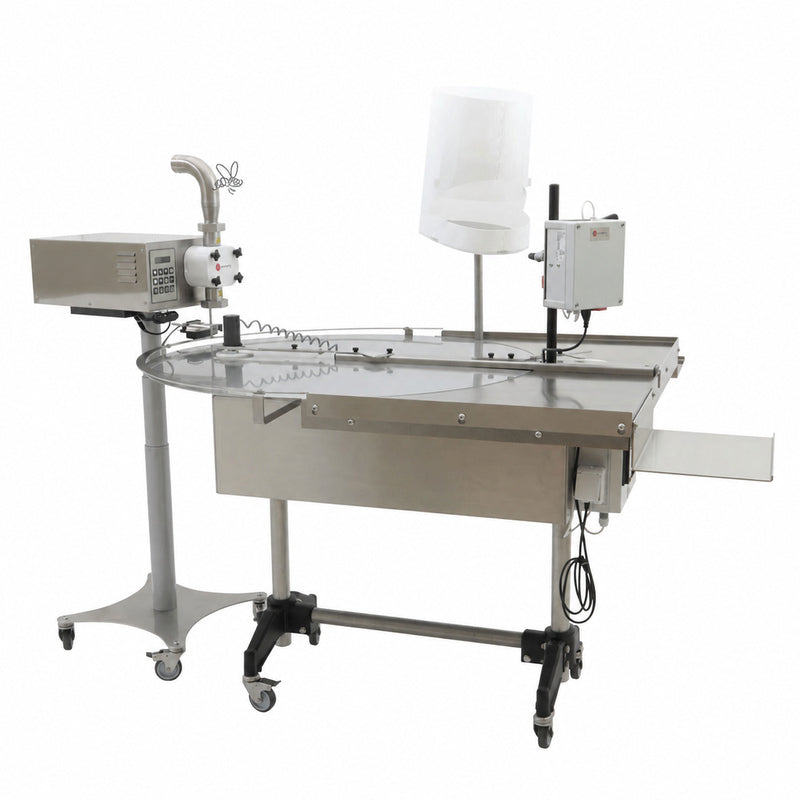

Swienty DANA api MATIC 2000 + PRO Filling Station

The PRO station combines measured filling with an organised workspace for lid fitting. The DANA api MATIC 2000+ handles the dose, the turntable moves containers through the filling area, and the surrounding surfaces keep the next jars and lids within reach. You still load containers, place lids and operate the lid fitter.

Keep settings for repeat batches

The filler stores more than 20 programmes with dose, calibration and other filling settings. For example, you can keep separate programmes for two regular jar sizes, then recall the appropriate settings when the next order comes in. Check and recalibrate the fill when changing products or production conditions.

Control the fill and cut-off

The computer-controlled gear pump has adjustable speed and anti-drip control. These settings help you adapt the fill to your product and container. The product-contact parts are made from food-grade plastic or stainless steel and can be taken apart for cleaning.

Bring filling and lid fitting together

The lid dispenser keeps lids close to the operator. Once a jar is filled, place its lid on and press the lid fitter's handle to screw it into position. Adjustable torque lets the closing setup be matched to a suitable jar and lid combination.

The PRO adds a lid dispenser, lid fitter and surrounding storage space to a 100 cm filling-table setup. It suits producers who want filling and lid fitting organised at one workstation, with room to prepare empty jars and collect finished packs.

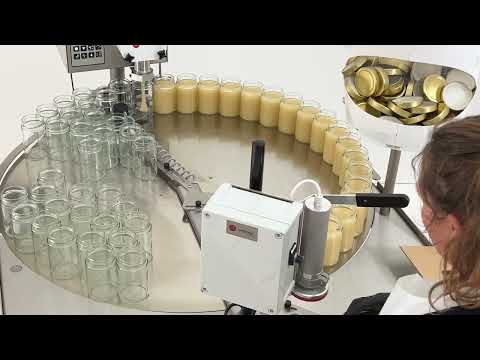

How a batch moves through the station

1. Connect the product feed, prepare the containers and load the lid dispenser.
2. Select and calibrate the filling programme, then set the filling height and container guides for your jars.
3. Load jars onto the turntable for filling, keeping the supply of empty containers topped up.
4. Take a filled jar, place its lid on and use the lid fitter to screw it into position.
5. Move the finished jar to the collection area and continue the run. Clean the product-contact parts according to the machine instructions after use.

Send us your product details, fill sizes, jar dimensions, lid specification and available workspace. We can check whether this station fits your production and confirm the required configuration before you order.

Main equipment included

• DANA api MATIC 2000+ filling machine.
• Electric floor stand and 100 cm turntable.
• Side surfaces and jar storage boards.
• Handle-operated lid fitter and lid dispenser.
• Lockable wheels.

Filling kit

• Foot pedal: a way to start a filling cycle by foot.
• Counterflow valve and dosing syringe: components supplied for the filling setup; their use is covered in the machine instructions.
• Complete cut-off assembly: the outlet assembly used to control the end of the fill.
• BS fitting nut, 1.5 m of 2-inch hose, bent fitting and hose clamp: components for connecting the product supply to the filler.
• Wire switch and photo sensor with brackets: components for container detection and filling control.
• Machine legs: supplied as part of the filler kit.

Confirm with your quotation

The product feed connection, outlet, jar guides and lid-fitting setup need to match your application. Any additional hopper, alternative nozzle or other accessory should be identified separately in the quotation.

Downloads

• ↓ Download PRO filling station data sheet (PDF)

How many finished jars per hour can we expect? The DANA api MATIC 2000+ has a stated pump capacity of approximately 400 L/h. This describes the pump's output; the finished jar rate also depends on fill size, product flow, container loading and the time needed to place and fit each lid. Send us your pack sizes and target output so we can assess the complete workflow.

Does the PRO station use a more powerful filler than the standalone 2000+? It uses the DANA api MATIC 2000+ filling machine. The PRO adds container handling, lid fitting and workspace around that filler. These additions help organise the batch and reduce handling between tasks; they do not increase the pump's stated capacity.

Does it place lids on jars automatically? The operator takes a lid from the dispenser and places it on the filled jar. The lid fitter then screws it into position when the operator presses the handle.

Can one person operate the station? Swienty describes the station as suitable for one or two operators. The best arrangement depends on the filling and lid-fitting workload, your pack sizes and the output you need.

Can we use different jar and lid sizes? The filling height is adjustable, and the lid fitter has adjustable torque. Each jar and lid combination still needs checking for clearance, guidance and compatibility. Send us dimensions and lid details before ordering.

Can it fill products other than honey? Other products may be suitable. Tell us what you are filling, how it flows, whether it contains particles, its filling temperature and the dose and container you use. We can check the application with Swienty before recommending a setup.

Do we need a hopper? A hopper is one possible way to feed the filler. A suitable vessel connected by hose may also be appropriate. The connection and supply arrangement should be checked for your product and workspace.

How do we switch between regular pack sizes? Store separate filling programmes for your regular doses, then recall the appropriate programme for the next batch. Adjust the filling height and guides as needed, and check the dose and lid-fitting setup before continuing production.

What information should we send with an enquiry? Include the product, filling temperature, target doses, jar dimensions, lid type, batch sizes and target output. Photos of the jars and lids, plus the available workspace, will help us check the configuration.

Delivery

The PRO Filling Station is sometimes available from Swienty stock. If production is required, the lead time can be up to 2–3 weeks. We will confirm availability, the production lead time and the estimated UK delivery date for your configuration before accepting your order.

This station requires shipment on two pallets. Tell us your delivery postcode, access details and any production deadline so we can confirm the freight charge and delivery arrangements, including any unloading requirements.

Machines supplied for use in the UK are fitted with a UK plug.

Delivery estimates are a guide rather than a guaranteed arrival date. See our Delivery Information for the general arrangements.

Returns and cancellations

Please contact BatchPoint before cancelling an order or sending an item back. Business change-of-mind returns require our written agreement. We will confirm the applicable conditions, any restrictions for configured or special-order equipment, and return transport arrangements before a return is made.

If your order arrives damaged or incorrect, contact us as soon as possible with your order details and photographs. Where damage is visible at delivery, please also tell the courier. Wait for our return instructions before sending anything to Swienty or another address. See our Returns and Cancellations policy for further information.

Machine warranty

Swienty provides a 2-year manufacturer’s warranty on its machines. The warranty excludes damage caused by improper use, misuse or operator error, such as dropping the machine or running the pump without product.

We will confirm any component-specific warranty terms for the turntable, station equipment and additional accessories before you order.

Support

For help after delivery, contact contact@batchpointequipment.com with your order number, a description of the issue and any useful photographs or video. BatchPoint is your first point of contact and will liaise with Swienty where technical assistance is needed.

If an inspection, repair or return is needed, we will confirm the next steps and any carriage arrangements before you send the item.
