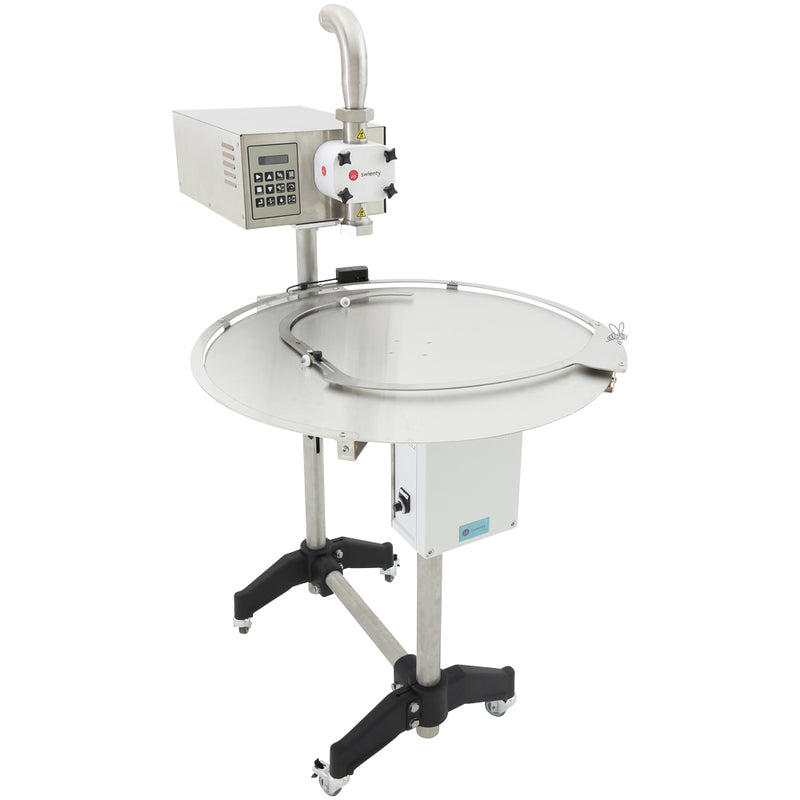

Swienty 70 centimetre filling station with DANA 2000+

Swienty DANA api MATIC 2000 + Filling Station (70 cm Turntable)

by Swienty
SKU 110897EU

When filling orders means positioning and removing every jar by hand, the pace of the batch can depend as much on handling containers as on dispensing product. This station pairs the DANA api MATIC 2000+ with a 70 cm automatic turntable. You place empty containers on the table; it brings each one to the filling position, stops for the measured fill and moves on to the next.

The 70 cm table gives growing production teams a compact way to organise repeat filling runs. You still load empty containers and collect filled ones, while the station handles their movement through the filling position. The product feed, outlet and container fit are specified for your application.

Enquire about this station with your product, target fill, container dimensions and expected batch size. We will check the setup and provide a quotation.

Price on enquiry

Tell us about your application. We'll help confirm the right setup, pricing and delivery.

Request a quote

Include your product, container size, fill volume and the output you'd like to achieve. It's fine if you don't have every detail yet.

We'll use your details to respond to this enquiry. Privacy policy

Overview

The station combines a computer-controlled DANA api MATIC 2000+ gear-pump filler with a 70 cm rotating table. The table advances containers to the outlet; when a container reaches the switch, the table stops and the filler dispenses the programmed dose. The table then advances to the next container.

Spend less of the run positioning jars

With a standalone filler, you present each container beneath the outlet. Here, the turntable repeats that movement for you. Your attention can stay on feeding the table, collecting filled containers and checking the batch rather than starting every fill individually. The adjustable guide and filler position help accommodate different container formats.

Keep settings for repeat products and pack sizes

The 2000+ stores 20 filling programmes with dose, calibration and other filling settings. You could keep separate settings for a regular retail jar and a larger food-service pack, then recall the appropriate programme for the next run. Check a test fill when changing jobs and recalibrate when the product or filling conditions change.

Adjust the fill to the product

Pump speed and anti-drip control can be adjusted for the fill. Product-contact parts are made from food-grade plastic or stainless steel and can be taken apart for cleaning. Swienty has documented a producer using a 70 cm DANA 2000+ station for plain and fruit yoghurt; that producer’s setup included a separate 20 L hopper. Suitability for your recipe and cleaning process still needs to be checked.

How a filling run works

  1. Set up the table guide and filler position for your containers, and connect a suitable product feed from a vessel or optional hopper.
  2. Select the filling programme, set the dose and calibrate it using a test fill and a suitable scale.
  3. Place empty containers on the turntable. The table brings each container to the filling position, stops while it is filled and then moves to the next.
  4. Collect filled containers, replenish the empty ones and check fills during the run as appropriate.

The turntable automates container movement through the filling position. Loading, collection, product supply and checks remain operator tasks; capping and labelling are separate processes.

Choose Setup

The 70 cm station is the more compact of these two DANA 2000+ turntable pages. The 100 cm station offers a larger table with a railing that separates feeding and collection areas. Both use a DANA api MATIC 2000+ filler, so table diameter alone does not increase the pump’s stated output.

Configuration What it changes Included here?
70 cm DANA 2000+ station Automatic container movement through the filling position on a compact turntable. Yes: the filling machine and 70 cm turntable are the basis of this page.
100 cm DANA 2000+ station A larger working table with distinct feeding and collection areas. No: this is a separate station.
Hopper feed Supplies product from a hopper mounted above the pump. Optional; specify a suitable hopper and lid in the quotation.
Alternative outlet nozzle Matches the outlet to the product, dose and container opening. Optional; the appropriate outlet is checked for your application.
Hot-fill configuration Allows approved applications above the standard 40°C product-temperature limit. Optional; the complete hot-fill setup must be specified and quoted.

The supplied 70 cm station sheet gives a container diameter of 30–120 mm and height of 30–290 mm. Send us your actual containers, particularly if they are near a limit, so we can check the guide, outlet and clearance for the quoted setup.

Specs & Included
Specification Manufacturer information
Station DANA api MATIC 2000+ with automatic 70 cm turntable; station item 110897EU
Table diameter 70 cm
Container movement Turntable advances containers, stops at the filling position and advances after the fill
Stated container diameter 30–120 mm in the supplied station sheet; check the actual container and guide arrangement
Stated container height 30–290 mm in the supplied station sheet; check clearance with the selected outlet
Filling method Computer-controlled reversible gear pump with adjustable speed and anti-drip control
Filling programmes 20 programmes for dose, calibration and other filling settings
Stated precision ±1 g; actual results depend on the product, dose, setup and calibration
Pump capacity Approximately 400 L/h; this describes pump output, not finished containers per hour
Standard product temperature Maximum 40°C
Optional hot filling Up to 95°C for an approved configuration with additional hot-fill equipment
Pump connections 1½-inch BS connections; the feed hose and fittings for the station will be confirmed in the quotation
Filler electrical supply 90–264 V AC, 50/60 Hz for the DANA 2000+ filling machine
Filler power consumption 575 W for the filling machine; confirm the complete station’s electrical requirements in the quotation

Station and machine components

  • DANA api MATIC 2000+ and 70 cm turntable: the filler and the table that moves containers through the filling position.
  • Container guide and triggering arrangement: position containers and coordinate the table stop with the filling cycle.
  • Foot pedal: supplied with the filling machine for the appropriate manual control mode.
  • Counterflow valve: helps prevent product running back through the feed hose during pauses.
  • Cut-off assembly: the outlet assembly that helps stop flow at the end of a dose.
  • 0–60 ml dosing syringe: a separate graduated syringe supplied with the machine kit.
  • Feed hose and fittings: the exact hose, connection parts and clamp will be itemised in your quotation.

Starter spare parts

The machine kit includes replacement cut-off components, diaphragms, connection gaskets, pump-head nuts and O-rings. We will confirm their quantities and sizes against the current station kit in the quotation.

Accessories sold separately

A hopper and lid, alternative nozzles and hot-fill equipment are optional unless specifically listed in your quotation. A hopper shown in manufacturer application photographs should not be taken as part of the standard station.

Downloads

FAQs

Is this an automatic filling line? The turntable automatically presents containers to the filler and moves on after each dose. An operator still loads empty containers, removes filled ones and monitors the run. This station does not cap or label containers.

How does the 70 cm station differ from the 100 cm station? The 70 cm version provides the turntable workflow in a smaller table format. The 100 cm station gives more table area and separates the feeding and collection zones with a railing. Both use the DANA api MATIC 2000+ filler; we can check which layout fits your containers, workspace and staffing.

Can it fill something other than honey? Potentially. Swienty has documented yoghurt production on a 70 cm DANA 2000+ station. Other products depend on flow, ingredients, particles, temperature and cleaning requirements. Tell us what you make and send container details so we can check the application with Swienty.

How many containers per hour can it fill? There is no single rate for every product and pack size. The 400 L/h figure is the pump’s approximate output. Dose size, product behaviour, the selected outlet and the time needed to load and collect containers all affect finished output.

Does the machine weigh each container? No. Use a suitable scale to calibrate test fills, then the filler dispenses the set dose. Check fills during production and recalibrate when conditions change.

Is a hopper included? No. A hopper and lid can be specified separately, or the pump can be connected to a suitable vessel. Tell us how you plan to feed the product so we can check the connections.

Can I hot-fill with this standard station? The standard product-temperature limit is 40°C. An approved hot-fill configuration may be specified for applications up to 95°C, but it requires more than a change of programme. Tell us your filling and cleaning temperatures so the complete product-contact setup can be checked.

Will it arrive ready to use? Swienty states that the 70 cm station requires assembly and supplies assembly instructions. We will confirm the dispatch arrangement and what you need to do on delivery as part of the quotation.

Delivery & Returns

Delivery

This station is normally held in stock by Swienty. Subject to availability, estimated UK delivery is approximately 3–4 days after payment has been received, excluding any customs clearance delays. We will confirm current availability and the delivery estimate for your order.

This station can be shipped by parcel service. The delivery charge depends on the items ordered and your destination; we will confirm the charge before accepting your order. Tell us your postcode and any production deadline when you enquire.

Machines supplied for use in the UK are fitted with a UK plug.

Delivery estimates are a guide rather than a guaranteed arrival date. See our Delivery Information for the general arrangements.

Returns and cancellations

Please contact BatchPoint before cancelling an order or sending an item back. Business change-of-mind returns require our written agreement. We will confirm the applicable conditions, any restrictions for configured or special-order equipment, and return transport arrangements before a return is made.

If your order arrives damaged or incorrect, contact us as soon as possible with your order details and photographs. Where damage is visible at delivery, please also tell the courier. Wait for our return instructions before sending anything to Swienty or another address. See our Returns and Cancellations policy for further information.

Warranty & Support

Machine warranty

Swienty provides a 2-year manufacturer’s warranty on its machines. The warranty excludes damage caused by improper use, misuse or operator error, such as dropping the machine or running the pump without product.

We will confirm any component-specific warranty terms for the turntable, station equipment and additional accessories before you order.

Support

For help after delivery, contact contact@batchpointequipment.com with your order number, a description of the issue and any useful photographs or video. BatchPoint is your first point of contact and will liaise with Swienty where technical assistance is needed.

If an inspection, repair or return is needed, we will confirm the next steps and any carriage arrangements before you send the item.

See it in action!

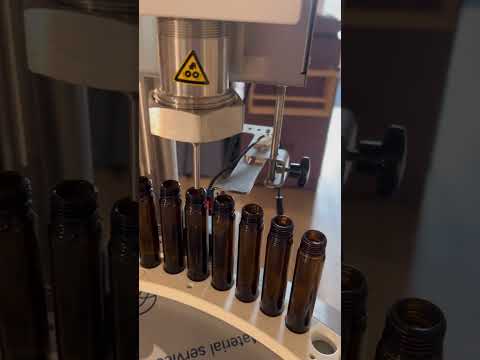

This demonstration shows a 70 cm station with an additional fixture. The fixture shown is not included in the standard configuration listed here; the turntable arrangement is similar.
