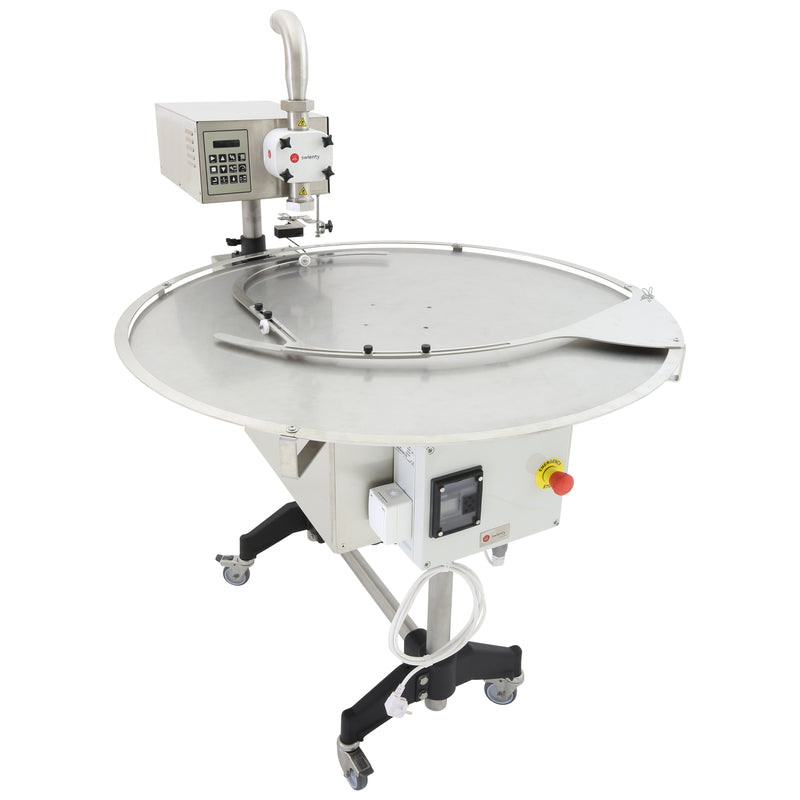

Swienty 100 centimetre filling station with DANA 2000+

Swienty DANA api MATIC 2000 + Filling Station (100 cm Turntable)

by Swienty
SKU 110885

As filling batches grow, repeatedly moving jars into position can interrupt an otherwise steady run. This station combines the DANA api MATIC 2000+ with a 100 cm automatic turntable. You place empty containers in the feeding area; the table brings them to the filler, stops for the measured dose and moves on. A separate collection area gives you a clear place to remove filled containers.

The larger table creates more room to organise loading and collection around the same DANA 2000+ dosing machine. It is a useful choice when the working area around a compact turntable feels tight, provided the station fits your containers and available floor space.

Enquire about this station with your product, container dimensions, target fill and batch requirements. We will check the configuration and provide a quotation.

Price on enquiry

Tell us about your application. We'll help confirm the right setup, pricing and delivery.

Request a quote

Include your product, container size, fill volume and the output you'd like to achieve. It's fine if you don't have every detail yet.

We'll use your details to respond to this enquiry. Privacy policy

Overview

The 100 cm filling station pairs a DANA api MATIC 2000+ gear-pump filler with an automatic stainless-steel turntable. A railing divides the tabletop into feeding and collection zones, giving the operator distinct places to load empty containers and remove filled ones.

Keep the filling position supplied

The table moves containers to the outlet and stops while the filler dispenses the programmed dose. It then advances to the next container. This takes repeated jar positioning out of the operator’s hands while leaving the important tasks—supplying product, loading, collection and fill checks—with your team.

Return to familiar batch settings

The DANA 2000+ stores 20 filling programmes with dose, calibration and other filling settings. You could keep separate programmes for a smaller retail container and a larger trade pack. Recall the relevant settings for a repeat order, check a test fill and recalibrate whenever the product or filling conditions change.

Control the dose and clean between runs

The filler has adjustable pump speed and anti-drip control. Its product-contact parts are food-grade plastic or stainless steel and can be disassembled for cleaning. Which foods, cosmetics or other viscous products it can handle depends on the recipe, temperature, particles, feed and outlet arrangement.

How a filling run works

  1. Set the guide and filling position for your containers, and connect a suitable product feed from a vessel or optional hopper.
  2. Select a filling programme, set the dose and calibrate using a test fill and a suitable scale.
  3. Place empty containers in the feeding area. The turntable moves each container beneath the outlet and stops for filling.
  4. The table advances after the dose. Remove filled containers from the collection area, replenish the empties and check fills during the run.

This is automatic container presentation and filling, with operator loading and collection. Capping and labelling would require separate equipment.

Choose Setup

The 100 cm station provides more table area than the 70 cm version and uses a railing to separate feeding from collection. It uses the same DANA api MATIC 2000+ pump family: choose the table layout around your containers, workspace and how your team will run the batch, rather than assuming a larger table increases the pump’s output.

Configuration What it changes Included here?
100 cm DANA 2000+ station Automatic container movement on a larger tabletop with feeding and collection zones. Yes: the filling machine and 100 cm turntable are the basis of this page.
70 cm DANA 2000+ station A more compact turntable arrangement for automatic container presentation. No: this is a separate station.
Hopper feed Supplies product from above the pump when that suits the process. Optional; a suitable hopper and lid can be specified.
Alternative outlet nozzle Matches the outlet to your product and container opening. Optional; checked as part of the quoted setup.
Hot-fill configuration Supports approved applications above the standard 40°C product-temperature limit. Optional; the complete equipment arrangement must be specified and quoted.

Swienty lists a container diameter of 30–115 mm and height of 30–190 mm for this station. The larger tabletop does not automatically mean greater container clearance. Share the actual container and intended outlet with us, particularly near either limit.

Specs & Included
Specification Manufacturer information
Station DANA api MATIC 2000+ with automatic 100 cm turntable; station item 110885
Table diameter 100 cm
Table arrangement Stainless-steel tabletop with a railing separating feeding and collection zones
Container movement Automatic presentation at the filler, stop during dosing and advance to the next container
Stated container diameter 30–115 mm; check your actual container against the guide and outlet arrangement
Stated container height 30–190 mm; check clearance with the selected outlet
Filling method Computer-controlled reversible gear pump with adjustable speed and anti-drip control
Filling programmes 20 programmes for dose, calibration and other filling settings
Stated precision ±1 g; actual results depend on product, dose, setup and calibration
Pump capacity Approximately 400 L/h; this is pump output, not a guaranteed finished-container rate
Standard product temperature Maximum 40°C
Optional hot filling Up to 95°C with an approved hot-fill configuration; additional equipment required
Pump connections 1½-inch BS connections; the station’s feed hose and fittings will be confirmed in the quotation
Filler power consumption 575 W for the DANA 2000+ filling machine; confirm the complete station’s electrical requirements in the quotation
Pump sound pressure Less than 70 dB(A), as stated by Swienty

Station and machine components

  • DANA api MATIC 2000+ and 100 cm turntable: the dosing machine and automatic container table.

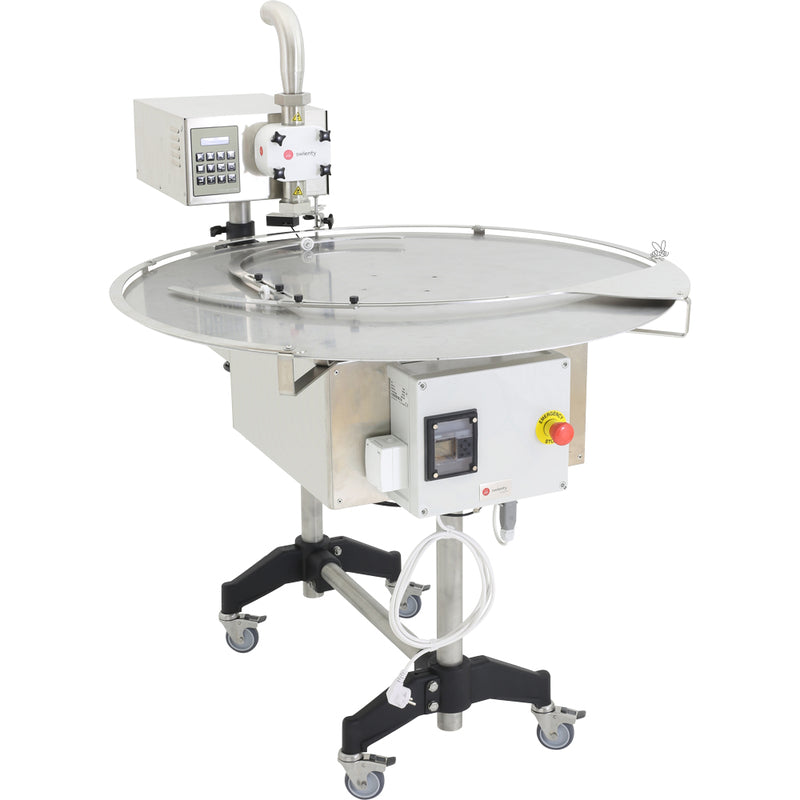

  • Dividing railing: separates the feeding and collection areas.
  • Photo sensor and wire switch: included station controls used to coordinate container presentation and filling.
  • Foot pedal: supplied with the filling machine for the appropriate manual control mode.
  • Counterflow valve: helps prevent product running back through the feed hose during pauses.
  • Cut-off assembly: the outlet assembly that helps stop flow after a dose.
  • 0–60 ml dosing syringe: a separate graduated syringe supplied with the machine kit.
  • Feed hose and fittings: the exact hose, connection parts and clamp will be itemised in your quotation.

Starter spare parts

The machine kit includes replacement cut-off components, diaphragms, connection gaskets, pump-head nuts and O-rings. Their quantities and sizes will be confirmed against the current station kit in your quotation.

Accessories sold separately

A hopper and lid, alternative nozzles and hot-fill equipment are optional unless specifically listed in the quotation. Photographs may show a hopper or outlet selected for a particular application; their inclusion should be checked against the quoted package.

Downloads

FAQs

What does the 100 cm table add over the 70 cm station? It provides a larger tabletop and a railing that separates the areas for feeding empty containers and collecting filled ones. Both stations use the DANA api MATIC 2000+ filler. We can check which layout suits your available space and the way you plan to staff the line.

Will the larger table fill more containers per hour? Not automatically. Both pages use the same pump family. Finished output depends on the product, dose, outlet, how containers are loaded and collected, and the complete station setup. The approximately 400 L/h figure describes the pump, not a promised container rate.

Does the station load and remove containers by itself? No. The turntable presents containers to the filler and advances after each dose. An operator supplies empty containers, collects filled ones and checks the run.

Can it fill products other than honey? Potentially, where the product suits the pump and outlet. Tell us how it flows, whether it contains particles, its filling and cleaning temperatures, your target dose and container dimensions. We will check uncertain applications with Swienty before recommending a setup.

Does it weigh each container? No. You use a suitable scale to calibrate test fills. The machine then dispenses the set dose, and you should continue to check fills during production as appropriate.

Does this page include a hopper? No. A suitable hopper and lid can be added to the quotation, or the pump can be fed from an appropriate vessel using the correct connections. Tell us how you currently hold and transfer the product.

Can I use it for hot filling? The standard station has a maximum product temperature of 40°C. Swienty describes approved hot-fill configurations up to 95°C, but these need suitable additional components. Include both filling and cleaning temperatures in your enquiry.

How do I clean it between products? The filler’s product-contact parts can be disassembled for cleaning. Follow the supplied machine instructions. If your process requires frequent recipe changes, allergen controls or a particular cleaning method, tell us so these needs can be checked as part of the setup.

Delivery & Returns

Delivery

This station is normally held in stock by Swienty. Subject to availability, estimated UK delivery is approximately 3–4 days after payment has been received, excluding any customs clearance delays. We will confirm current availability and the delivery estimate for your order.

This station requires pallet delivery. Tell us your delivery postcode, access details and any production deadline so we can confirm the freight charge and delivery arrangements, including any unloading requirements.

Machines supplied for use in the UK are fitted with a UK plug.

Delivery estimates are a guide rather than a guaranteed arrival date. See our Delivery Information for the general arrangements.

Returns and cancellations

Please contact BatchPoint before cancelling an order or sending an item back. Business change-of-mind returns require our written agreement. We will confirm the applicable conditions, any restrictions for configured or special-order equipment, and return transport arrangements before a return is made.

If your order arrives damaged or incorrect, contact us as soon as possible with your order details and photographs. Where damage is visible at delivery, please also tell the courier. Wait for our return instructions before sending anything to Swienty or another address. See our Returns and Cancellations policy for further information.

Warranty & Support

Machine warranty

Swienty provides a 2-year manufacturer’s warranty on its machines. The warranty excludes damage caused by improper use, misuse or operator error, such as dropping the machine or running the pump without product.

We will confirm any component-specific warranty terms for the turntable, station equipment and additional accessories before you order.

Support

For help after delivery, contact contact@batchpointequipment.com with your order number, a description of the issue and any useful photographs or video. BatchPoint is your first point of contact and will liaise with Swienty where technical assistance is needed.

If an inspection, repair or return is needed, we will confirm the next steps and any carriage arrangements before you send the item.

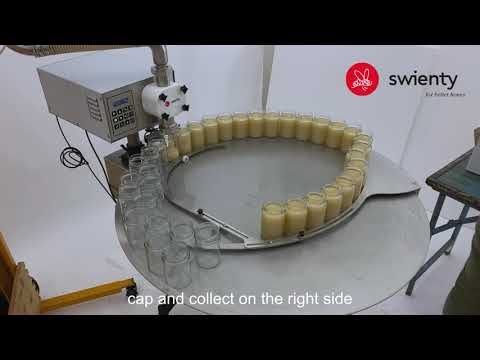

See it in action!
