Audion D 545 AH horizontal continuous band sealer

Audion D 545 Tabletop Continuous Band Sealer

by Audion
Sold out
£4,960.00
SKU D 545 AH-2
Format

Notify me when back in stock

The Audion D 545 is a compact tabletop continuous band sealer for production lines that need fast, repeatable 10 mm seals. Choose the horizontal AH format for bags that travel lying flat, or the vertical AV format for upright bags containing liquids, powders, granules or loose products.

Both formats combine an integrated conveyor with digital control of sealing temperature, conveyor speed and cooling time. Nine recipe memories make repeat jobs quicker to set up, while the automatic cool-down cycle protects the sealing belts after use.

AUDION D 545

Choose your setup

Start with the way your filled bag needs to travel. Both choices include the D 545 sealer and its integrated conveyor.

1. Choose the machine format

Choose Horizontal for packs that can lie flat. Choose Vertical when the contents need to stay upright.

2. Add maintenance spares (optional)

The same genuine spare-parts set fits both Horizontal and Vertical machines.

Your setup includes

    Total

    Contact us to confirm availability for this setup.

    Overview

    Fast, repeatable tabletop sealing

    • Continuous 10 mm seal at speeds up to 10 m/min.
    • Digital temperature, speed and cooling controls with nine recipe memories.
    • Automatic cool-down helps protect the PTFE belts and heating components.
    • Adjustable integrated conveyor supports bags up to 5 kg.
    • Suitable for PE, PP, cellophane, paper, aluminium and laminated packaging materials, subject to sample testing.

    Horizontal or vertical?

    Choose the way your filled bag needs to travel

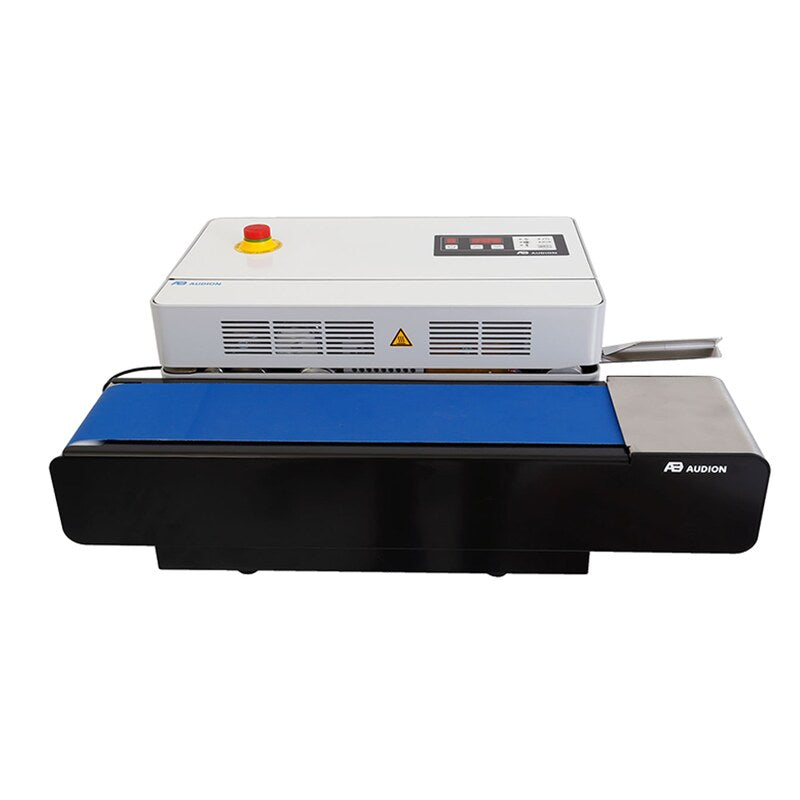

    Horizontal — D 545 AH

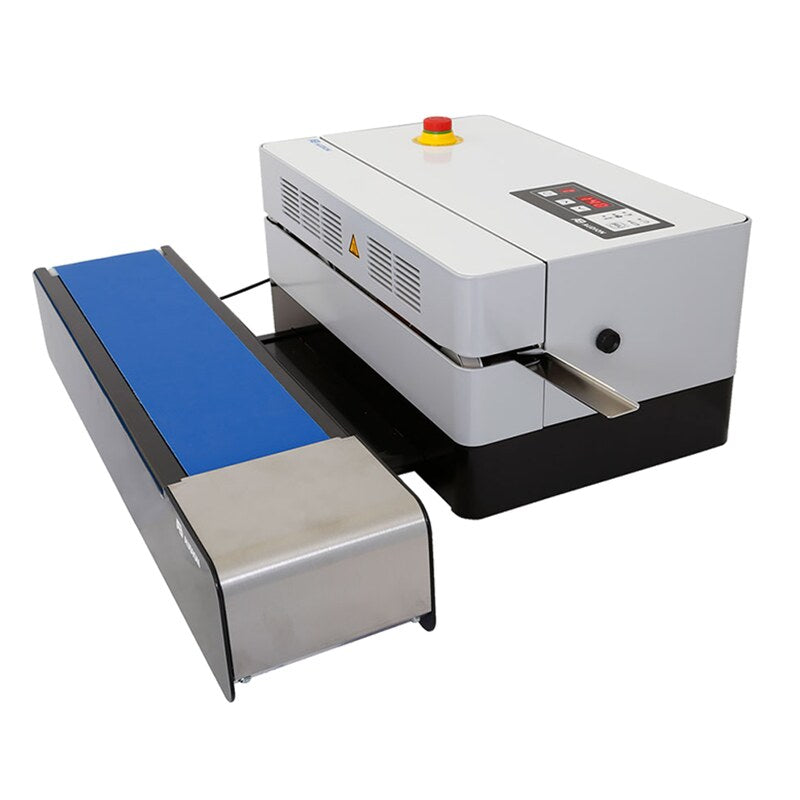

    For flat, narrow or stable packs that can travel lying down. The conveyor height is adjustable and can move up to 70 mm towards the operator to suit the pack and seal position.

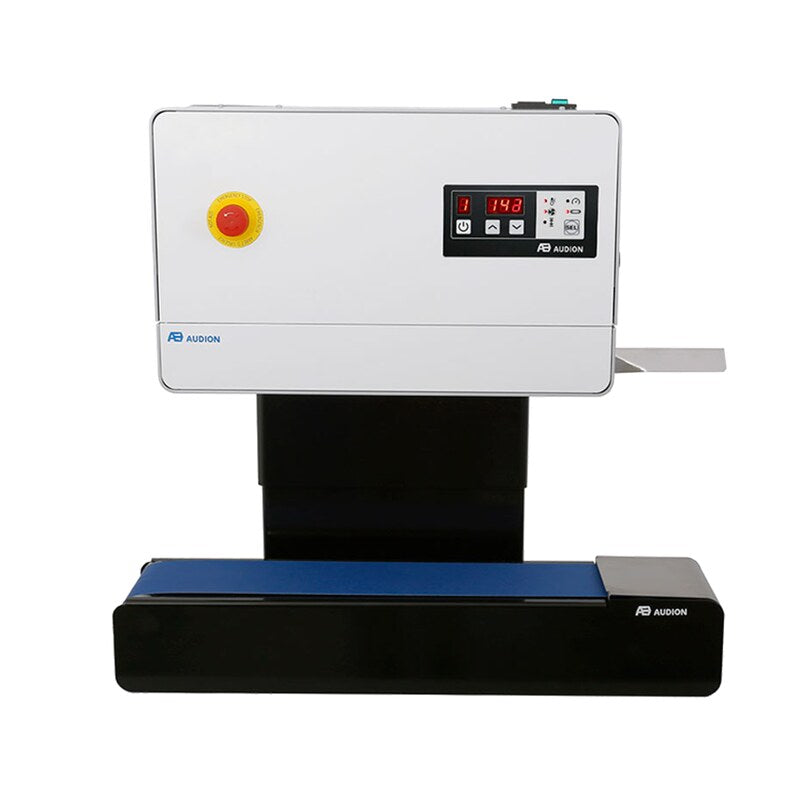

    Vertical — D 545 AV
    For bags that must stay upright, including liquids, powders, granules and loose pieces. The sealing head is electrically height-adjustable for different bag sizes.
    Specs & Included
    Seal width 10 mm
    Sealing speed Up to 10 m/min
    Maximum temperature 250°C
    Maximum bag weight 5 kg
    Film range 2 × 25 to 2 × 200 micron, material dependent
    Conveyor Integrated and adjustable; 670 × 112 mm
    Controls Temperature, conveyor speed and cooling time; 9 recipe memories
    Horizontal format D 545 AH-2; bags travel lying flat; maximum bag length 325 mm
    Vertical format D 545 AV-2; bags travel upright; maximum bag length 430 mm
    Included D 545 machine and integrated conveyor

    Download horizontal product sheet (PDF) Download vertical product sheet (PDF)

    FAQs

    Which format should I choose?
    Choose Horizontal when the filled bag can travel flat. Choose Vertical when the contents need to remain upright through the sealing process.

    Can I save settings for repeat jobs?
    Yes. The controller stores up to nine product recipes.

    What should I send for a suitability check?
    Send the bag material, total film thickness, dimensions, filled weight, contents and required throughput. A sample-seal trial is recommended for critical applications.

    What maintenance stock is available?

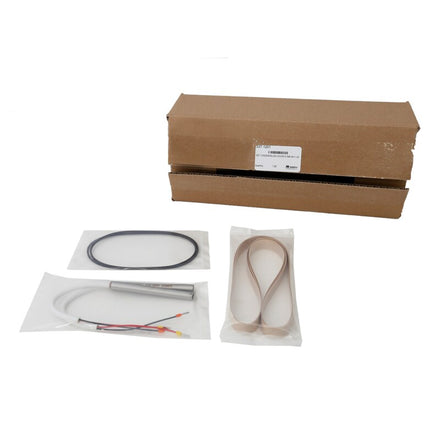

    The optional D 545 spare-parts set includes two V-belts, four PTFE belts and two heating elements. It fits both formats.

    Delivery & Returns

    This is specialist industrial equipment. Current availability, delivery route, lead time and delivery charge are confirmed before we accept your order. Please tell us the delivery postcode and any deadline. Contact us before returning equipment; business change-of-mind returns require written agreement. Report damaged or incorrect deliveries promptly and retain all packaging.

    Warranty & Support

    Audion provides a 1-year machine warranty, excluding wearing parts and misuse. BatchPoint is your first point of contact for application checks, setup support and replacement belts, elements and service kits.

    See it in action

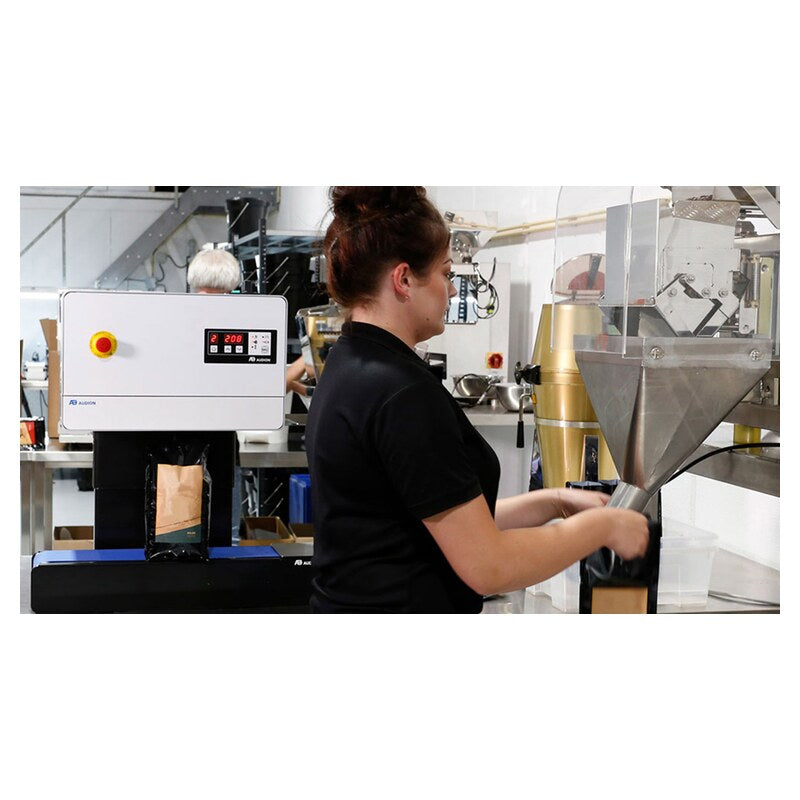

    Horizontal D 545 AH

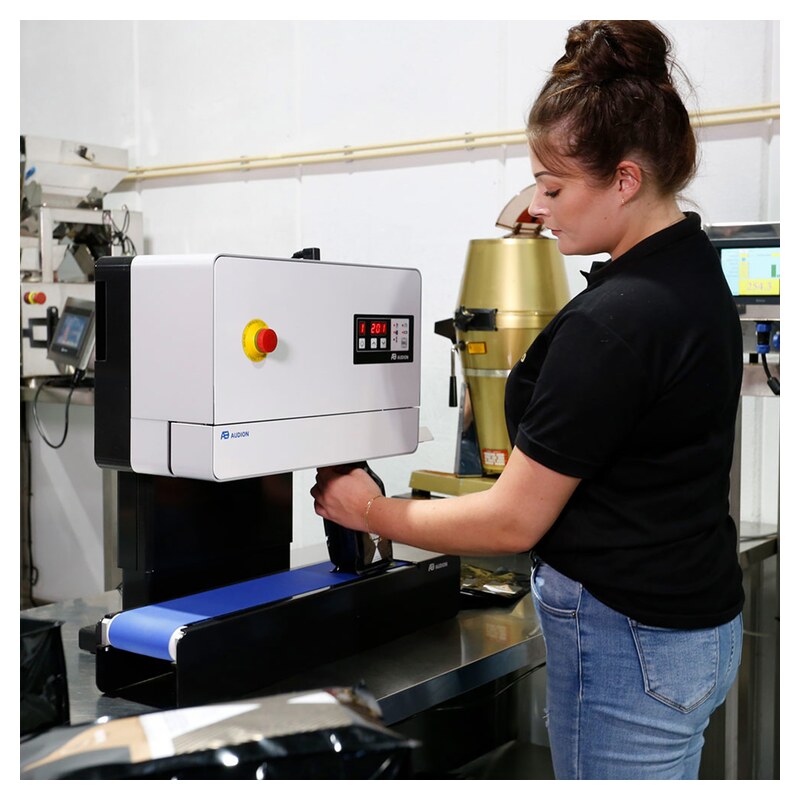

    Vertical D 545 AV
