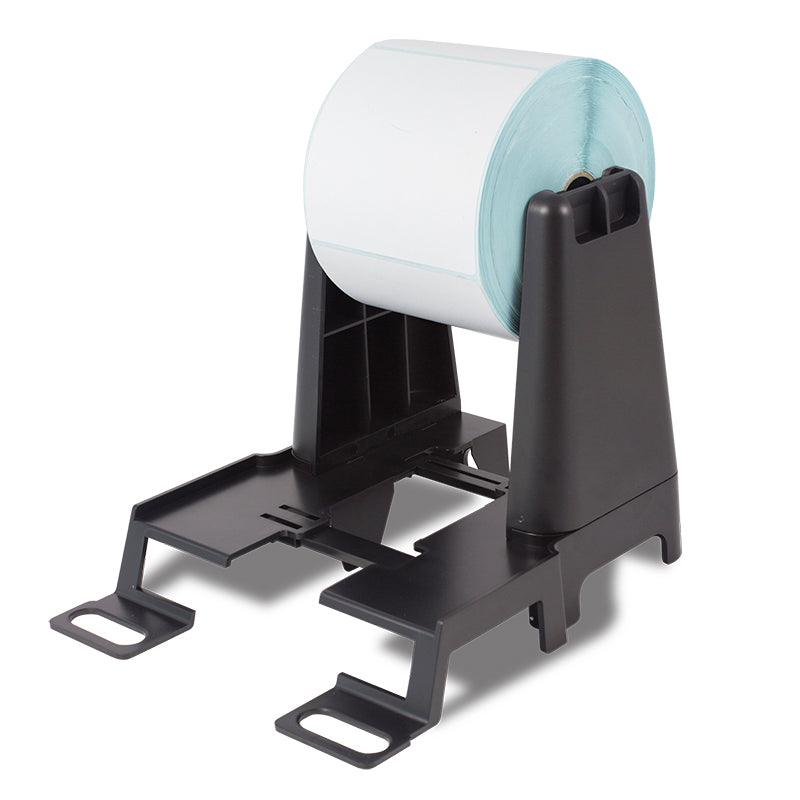

DTM UW-4 passive label unwinder holding a large label roll

DTM UW-4 Passive Label Unwinder

by DTM Print
Sold out
£35.70
SKU UW-4-PASSIVE

Notify me when back in stock

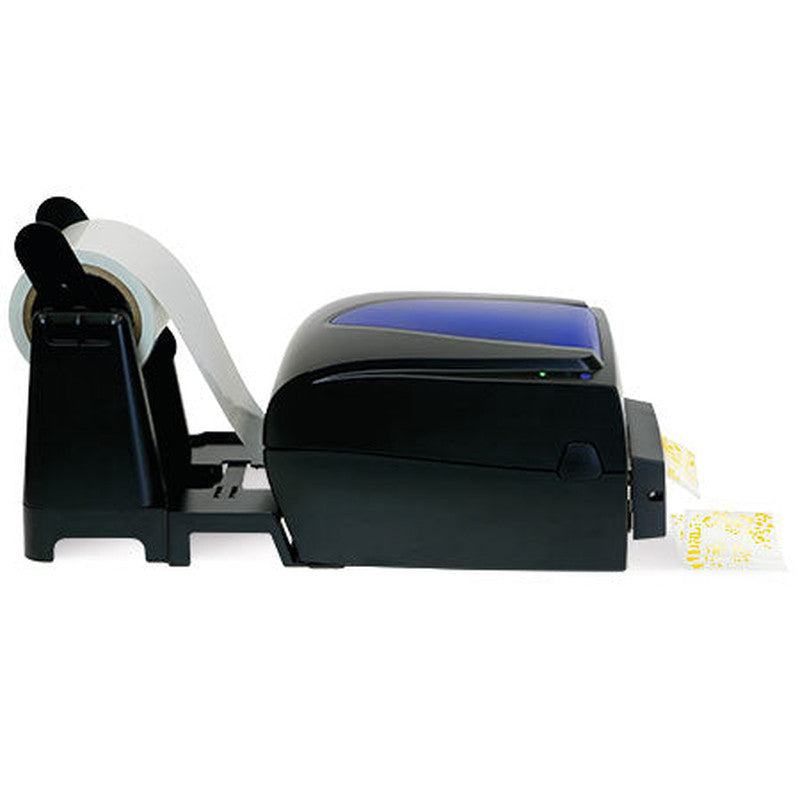

A compact desktop printer can run out of room for the larger label roll you want to use. The UW-4 sits beside the printer and lets a compatible roll feed from an external holder as the printer draws the label web through.

It is a passive unwinder: it needs no power and does not rewind printed labels. If you want finished labels gathered neatly onto a new roll after printing, choose a powered RW-series rewinder instead.

Overview

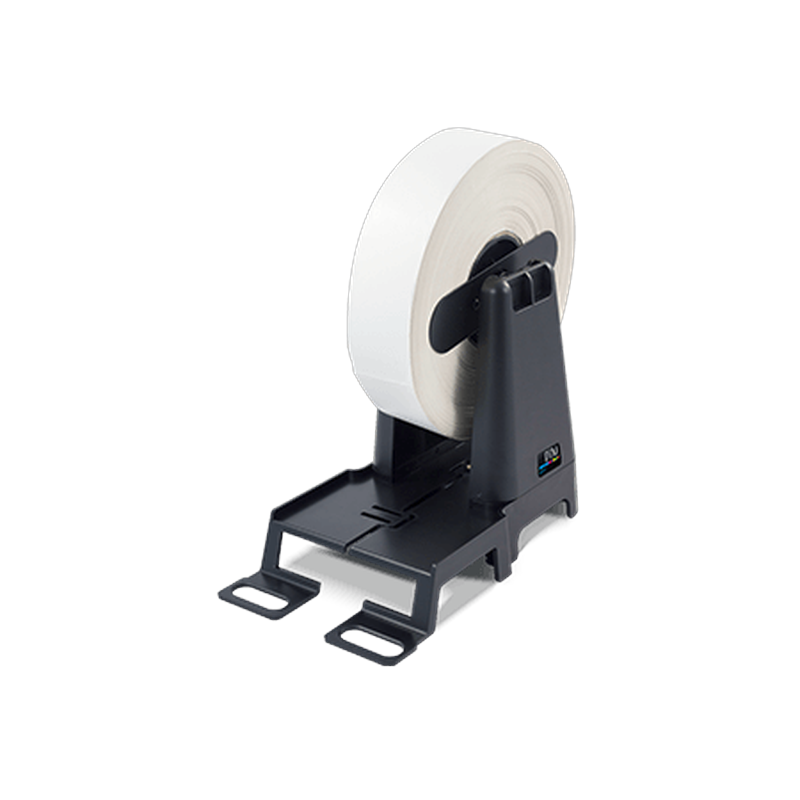

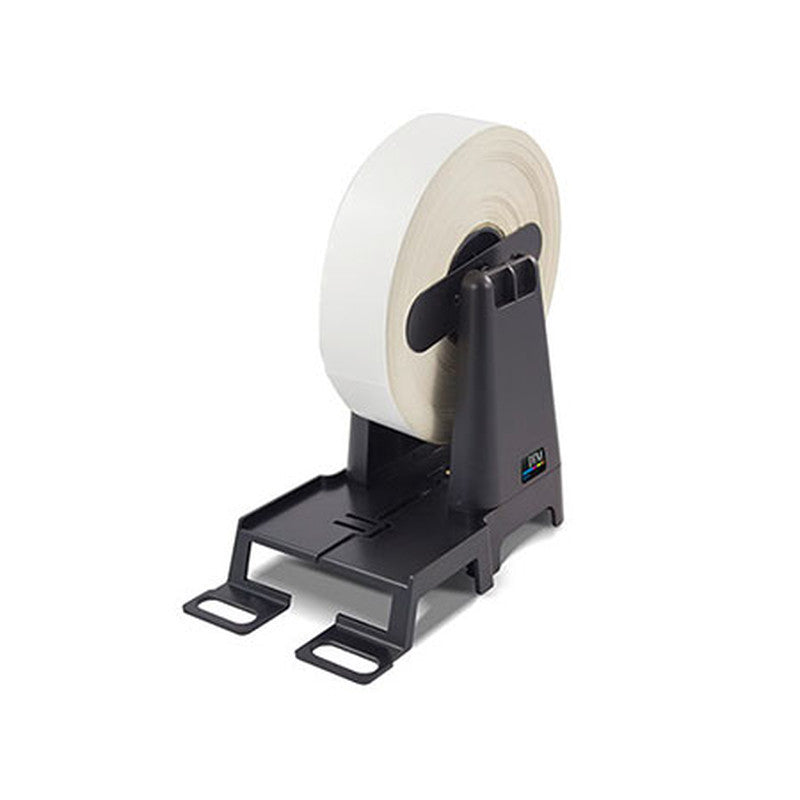

The UW-4 is a freestanding roll holder for feeding label stock into a compatible printer. Its simple setup suits a workstation where an external supply roll is useful but powered winding is unnecessary.

What it does in a print workflow

  1. Place a compatible supply roll on the UW-4.
  2. Position the unwinder near the printer and thread the label web through the printer as instructed for that model.
  3. The printer draws labels from the roll; the UW-4 rotates freely without a motor.

Check whether your printer supports externally fed media and has the correct label path. The UW-4 does not print, apply or rewind labels.

Choose Setup

Choose UW-4 when you only need to feed a larger supply roll into a compatible printer and want a passive holder. Choose RW-4, RW-7 or RW-8 when you need motorised rewinding of printed labels, or powered unwinding in a suitable setup.

Check your roll and printer

Confirm the roll width, outside diameter, weight and core opening, plus your printer model and feed path. DTM’s product text quotes a conservative 114.3 mm roll width for UW-4. If your roll is wider, ask us to verify the limit and alignment before ordering.

Specs & Included
Specification Manufacturer information
Function Passive, standalone unwinder; no electrical connection
Maximum roll width 114.3 mm in DTM’s product text (check wider rolls)
Maximum roll diameter 254 mm
Maximum roll weight 5 kg
Core Works with most cores larger than 25.4 mm
Size / weight Adjustable width 136–193 × 194 × 252 mm; approximately 0.5 kg

Included

UW-4 passive unwinder and instructions, as listed by DTM. Printer and label roll are separate.

Quickstart guide

↓ Download UW-4 quickstart guide (PDF)

Manufacturer information

DTM Winder Series specifications and resources.

FAQs

Does it rewind labels after they print?No. The UW-4 only lets a supply roll unwind into a compatible printer. Use a powered RW-series model to collect printed labels.

Does it need electricity?No. It is a passive device.

Will it work with my printer?That depends on the printer’s external-media path and settings as well as your roll. Send us the printer model, roll dimensions and core size for a fit check.

Can I order it by itself?Ask us for a delivered price. The cross-border order and UK onward shipping costs are proportionally high for this low-priced item, so it may work better alongside a machine or other equipment.

Delivery & Returns

Delivery

DTM normally dispatches from Germany to BatchPoint in London, a first leg of approximately 5–7 working days subject to stock and customs clearance. We then arrange onward UK delivery. For a standalone winder order or an add-on to a machine, we will confirm the full delivery charge and estimate before accepting your order. Delivery dates are estimates; see Delivery Information.

Returns and cancellations

Please check the roll and printer fit with us before ordering. Contact BatchPoint before cancelling or sending anything back. Change-of-mind returns for business purchases require our written agreement; your applicable statutory rights are unaffected. If goods arrive damaged or incorrect, contact us promptly with photographs and retain the packaging. See Returns and Cancellations.

Warranty & Support

Manufacturer warranty

DTM’s standard warranty is 12 months for qualifying UK purchases. Register the unit within 30 days of purchase for the free extension to 36 months, subject to DTM’s terms. Keep the purchase invoice and serial number and register with DTM.

Support

BatchPoint is your first contact for setup and after-sales questions. Email contact@batchpointequipment.com with your order number, printer model, roll dimensions and photographs if needed. We will involve DTM’s technical team where appropriate. Do not send a unit for repair until we have confirmed the process and carriage arrangements.
