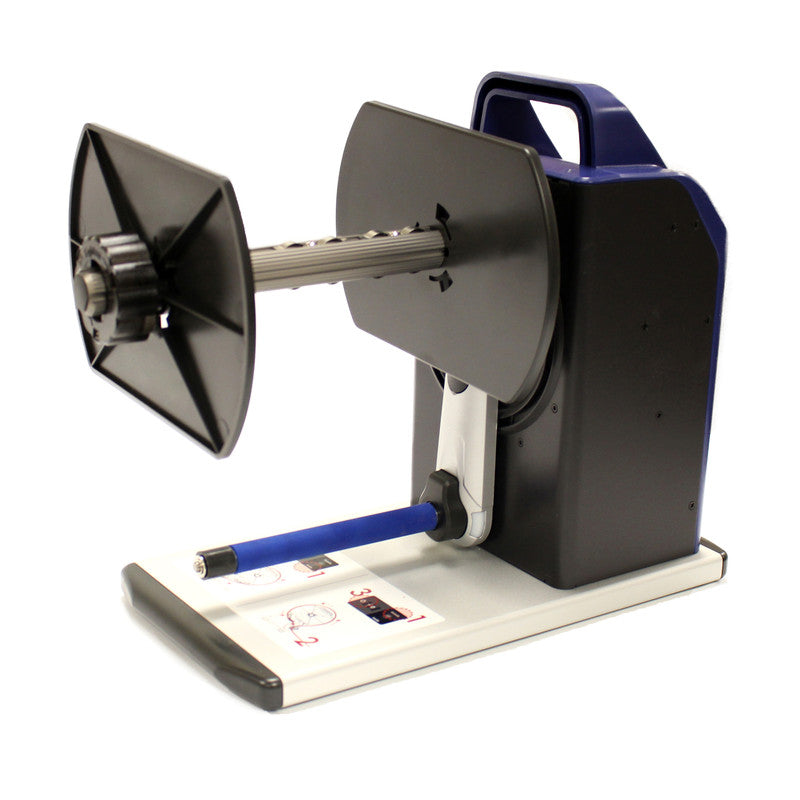

DTM RW-7 label rewinder and unwinder without a roll, front left view

DTM RW-7 Label Rewinder and Unwinder

by DTM Print
Sold out
£366.18
SKU RW-7EU

Notify me when back in stock

If your printer produces labels wider than the RW-4 can take, the RW-7 provides a powered rewinding station for rolls up to 177.8 mm wide. It collects printed output into an aligned roll ready to store or load into a compatible applicator.

The same unit can serve as an unwinder in a suitable printer setup. Its extra width comes with a smaller maximum roll diameter than the RW-4, so check both measurements rather than choosing by width alone.

Overview

The RW-7 handles printed roll stock beside a desktop label printer. Adjustable winding speed, core adaptors and the dancer arm help keep the web under control during a production run. It can also feed a printer from a supply roll when the printer supports external stock.

Where it fits

It belongs between label printing and applying: it winds the finished labels into a usable roll. It is not a label printer, a container applicator or the built-in waste-liner rewinder of the AP380e/PL400e.

Choose Setup

Choose RW-7 for labels up to 177.8 mm wide on a finished roll no larger than 152.4 mm in diameter. Choose RW-4 if 120 mm width is enough and you need up to 203.2 mm roll diameter. Choose RW-8 for wider, larger or heavier 76.2 mm-core rolls.

Verify media compatibility

Send us your printer model, label web width, roll diameter and core, material, winding orientation and downstream applicator model. Very flexible labels may need a trial to confirm clean winding.

Specs & Included
Specification Manufacturer information
Functions Powered rewinder and unwinder
Maximum roll width 177.8 mm
Maximum roll diameter / weight 152.4 mm / 5 kg
Core options 25.4 mm directly; supplied adaptors for 38.1, 50.8 and 76.2 mm
Maximum winding speed Up to 355 mm/s, adjustable
Size / weight 180 × 303 × 394 mm (W × H × D); approximately 5 kg
Power Universal power supply; confirm UK lead with us

Included

RW-7, 38.1/50.8/76.2 mm core adaptors, power supply and instructions, as listed by DTM. Printer and label stock are separate.

Manual

↓ Download RW-4/RW-7 user manual (PDF) and manufacturer comparison.

FAQs

Is RW-7 automatically better than RW-4 for every roll?No. RW-7 takes wider media, but its maximum roll diameter is 152.4 mm versus the RW-4’s 203.2 mm.

Does it rewind the waste backing liner from an applicator?No. It is for label-roll handling at the printer. The AP380e and PL400e have their own built-in waste-liner rewinders.

Can it feed labels into my printer?It can act as an unwinder, but the printer must support the intended external stock path. Tell us the printer model so we can check the setup.

Can I use a 76.2 mm core?Yes. DTM includes a 76.2 mm adaptor alongside smaller core options.

Delivery & Returns

Delivery

DTM normally dispatches from Germany to BatchPoint in London, a first leg of approximately 5–7 working days subject to stock and customs clearance. We then arrange onward UK delivery. For a standalone winder order or an add-on to a machine, we will confirm the full delivery charge and estimate before accepting your order. Delivery dates are estimates; see Delivery Information.

Returns and cancellations

Please check the roll and printer fit with us before ordering. Contact BatchPoint before cancelling or sending anything back. Change-of-mind returns for business purchases require our written agreement; your applicable statutory rights are unaffected. If goods arrive damaged or incorrect, contact us promptly with photographs and retain the packaging. See Returns and Cancellations.

Warranty & Support

Manufacturer warranty

DTM’s standard warranty is 12 months for qualifying UK purchases. Register the unit within 30 days of purchase for the free extension to 36 months, subject to DTM’s terms. Keep the purchase invoice and serial number and register with DTM.

Support

BatchPoint is your first contact for setup and after-sales questions. Email contact@batchpointequipment.com with your order number, printer model, roll dimensions and photographs if needed. We will involve DTM’s technical team where appropriate. Do not send a unit for repair until we have confirmed the process and carriage arrangements.
