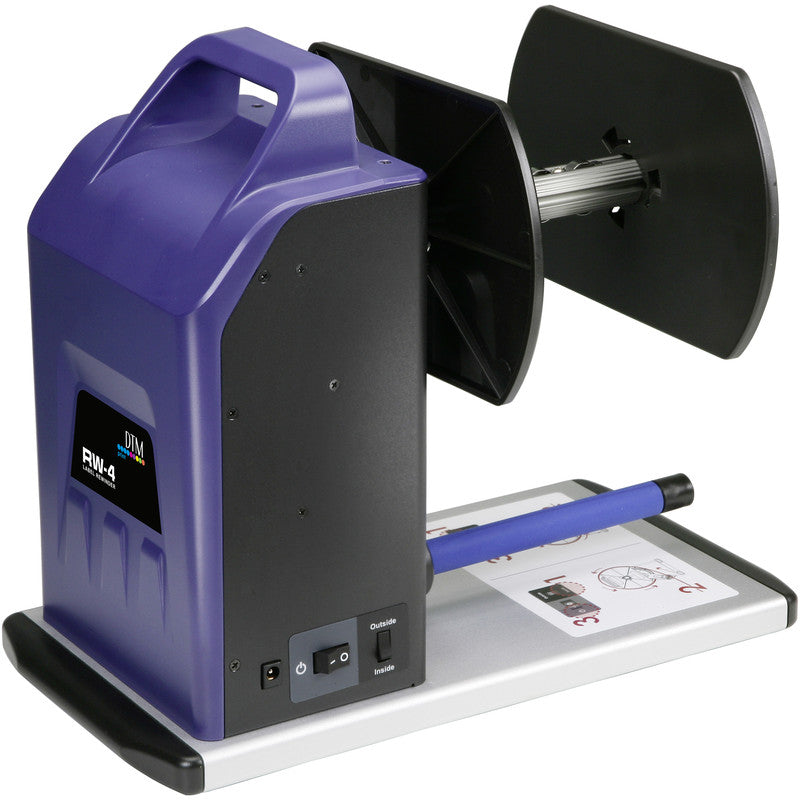

DTM RW-4 label rewinder and unwinder without a roll, front left view

DTM RW-4 Label Rewinder and Unwinder

by DTM Print
Sold out
£284.58
SKU RW-4EU

Notify me when back in stock

Freshly printed labels are easier to store and feed into an applicator when they are wound evenly onto a roll. The powered RW-4 collects compatible label output from a desktop printer, with guides and a dancer arm to help manage tension.

It can also be set up as an unwinder to feed a printer. The RW-4 suits rolls up to 120 mm wide; for wider stock, compare the RW-7 and RW-8 before ordering.

Overview

The RW-4 is a powered desktop winder for preparing roll-fed labels as part of a printing and application workflow. It can rewind printed labels onto a core or unwind supply stock in a compatible external-feed setup. It is separate from a bottle or pouch applicator: it handles label rolls, not containers or the waste backing paper inside an AP380e or PL400e.

Typical workflow

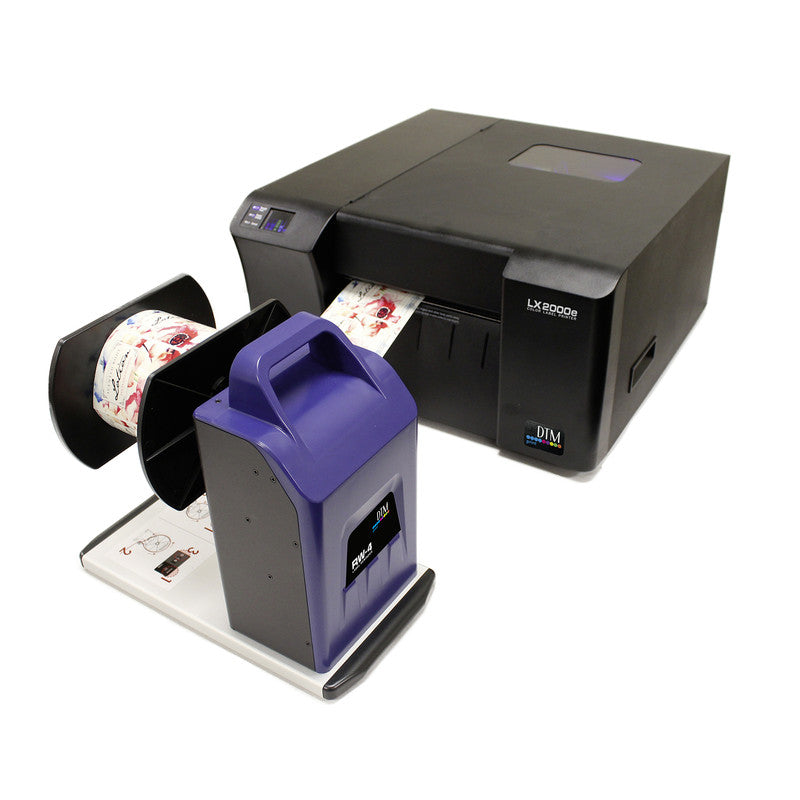

Printer output feeds to the RW-4; once the roll is finished, you can use it for storage or load a suitable roll onto a compatible label applicator. Check winding direction and the applicator’s core, roll diameter and label requirements before treating the two machines as a matched setup.

Choose Setup

Choose RW-4 if your label web is at most 120 mm wide and the finished roll is no larger than 203 mm in diameter. Choose RW-7 for up to 177.8 mm width but a smaller 152.4 mm maximum diameter. Choose RW-8 for a heavier/wider roll on a 76.2 mm core.

Check the entire label path

Tell us your printer, label material, width and core size, plus the machine that will use the rewound roll. Very flexible film stocks can slip or wind unevenly; DTM recommends a test when media behaviour is uncertain.

Specs & Included
Specification Manufacturer information
Functions Powered rewinder and unwinder
Maximum roll width 120 mm
Maximum roll diameter / weight 203.2 mm / 5 kg
Core options 25.4 mm directly; supplied adaptors for 38.1, 50.8 and 76.2 mm
Maximum winding speed Up to 355 mm/s, adjustable
Size / weight 180 × 303 × 349 mm (W × H × D); approximately 5 kg
Power Universal power supply; confirm UK lead with us

Included

RW-4, 38.1/50.8/76.2 mm core adaptors, power supply and instructions, as listed by DTM. Printer, labels and any downstream applicator are separate.

Manual

↓ Download RW-4/RW-7 user manual (PDF) and manufacturer comparison.

FAQs

Is a rewinder needed for the AP380e’s waste liner?No. The AP380e has its own waste-liner rewinder. The RW-4 collects finished printed labels or supplies a roll to a compatible printer.

Can it both rewind and unwind?Yes, with the appropriate setup. Check the printer’s external feed and winding direction first.

What core sizes fit?DTM lists 25.4 mm use without an adaptor and includes adaptors for 38.1, 50.8 and 76.2 mm cores.

Will flexible clear or plastic labels wind cleanly?Material stiffness and surface behaviour affect winding. If your film is particularly flexible, send us a sample description so we can ask DTM about a test.

Delivery & Returns

Delivery

DTM normally dispatches from Germany to BatchPoint in London, a first leg of approximately 5–7 working days subject to stock and customs clearance. We then arrange onward UK delivery. For a standalone winder order or an add-on to a machine, we will confirm the full delivery charge and estimate before accepting your order. Delivery dates are estimates; see Delivery Information.

Returns and cancellations

Please check the roll and printer fit with us before ordering. Contact BatchPoint before cancelling or sending anything back. Change-of-mind returns for business purchases require our written agreement; your applicable statutory rights are unaffected. If goods arrive damaged or incorrect, contact us promptly with photographs and retain the packaging. See Returns and Cancellations.

Warranty & Support

Manufacturer warranty

DTM’s standard warranty is 12 months for qualifying UK purchases. Register the unit within 30 days of purchase for the free extension to 36 months, subject to DTM’s terms. Keep the purchase invoice and serial number and register with DTM.

Support

BatchPoint is your first contact for setup and after-sales questions. Email contact@batchpointequipment.com with your order number, printer model, roll dimensions and photographs if needed. We will involve DTM’s technical team where appropriate. Do not send a unit for repair until we have confirmed the process and carriage arrangements.
