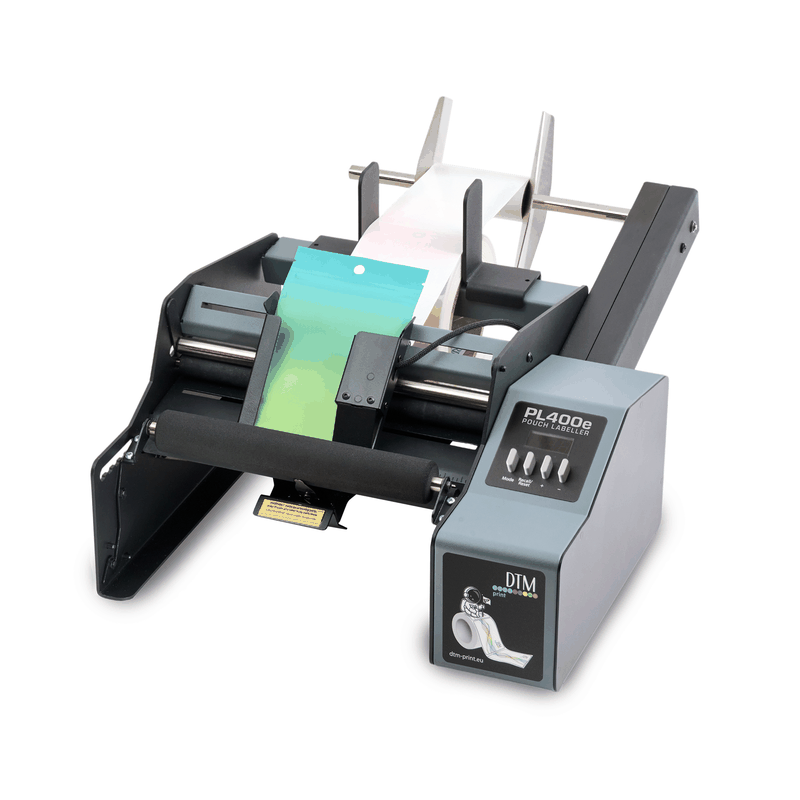

DTM PL400e pouch labeller with a pouch, front left view

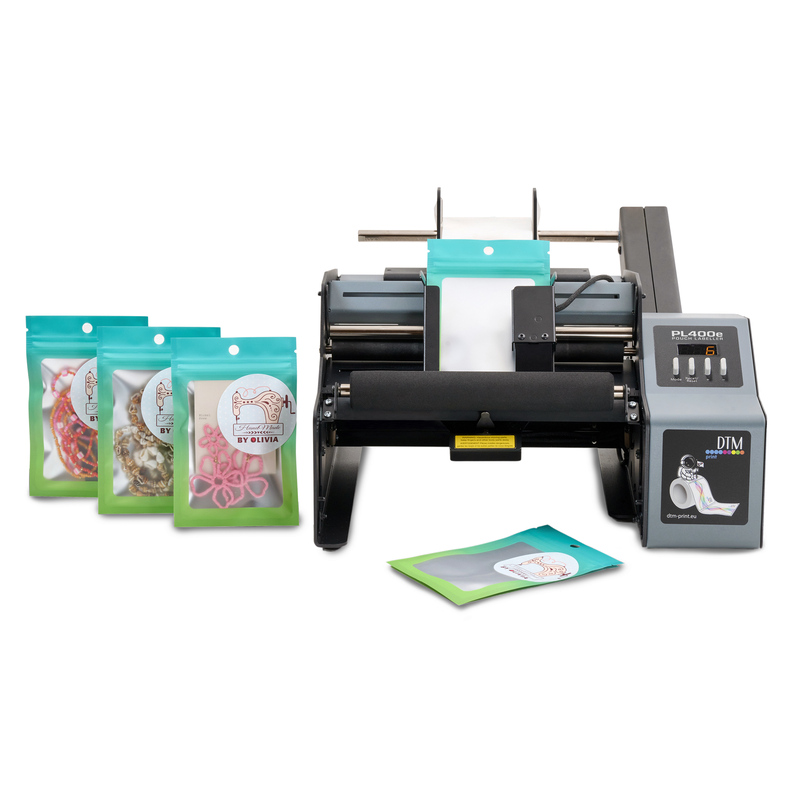

DTM PL400e Pouch Labeller

by DTM Print
Sold out
£1,830.90
SKU 074182

Notify me when back in stock

Applying a label straight across a batch of pouches can be awkward when every empty pouch shifts under your hand. The PL400e feeds each compatible unfilled, flat pouch through adjustable guides and applies a pre-printed roll label in a repeatable position.

It is a useful fit for producers preparing empty bags or pouches before filling, including compatible packs with zips, hanging holes or valves. Its integrated liner rewinder collects the spent backing paper during a run. If you need to label already filled, bulky packs, ask us to check another method.

Overview

The PL400e is a semi-automatic applicator built around empty pouches rather than bottles. Set the guides and label position, then insert each pouch. The machine takes it through the rollers and applies one label during that feed. Its display includes a counter and saved settings for repeat jobs.

How a pouch run works

  1. Load an outward-wound, die-cut roll of pre-printed labels and thread the waste liner into the integrated rewinder.
  2. Set the pouch guides and label offset using a sample pouch.
  3. Insert each empty pouch, allow the machine to feed it, then check the finished placement.

DTM quotes up to 1,300 pouches per hour in suitable conditions. The figure depends on the operator, pouch construction and label stock. This machine applies labels; it does not print them.

Choose Setup

Choose the PL400e for repeat labelling of flat, unfilled pouches. The AP550e is a different approach for rigid flat packages and other flat surfaces; it should not be treated as an interchangeable pouch feeder.

Confirm pouch and roll fit

Check the pouch width, height and thickness, including zips, valves and seams, and tell us where the label should sit. The standard published pouch width starts at 81 mm. DTM lists a separate narrow-bag adapter, but we need to confirm its fit and the new minimum width for your pouch before offering it. If you need labels on both sides, ask us to confirm the two-pass workflow with your exact pouch.

Specs & Included
Specification Manufacturer information
Pouch Flat, unfilled; 81–229 mm width, 45–812 mm height, up to 5.3 mm thick
Label dimensions 19–210 mm width; 19–812 mm length
Label roll Up to 203 mm outer diameter; 50.8/76.2 mm core; outward wound, die-cut
Operation One label per pouch feed; quoted up to 1,300 pouches/hour
Liner rewinder Integrated waste-liner rewinder
Machine size / weight 340 × 185 × 508 mm (W × H × D); 8.4 kg
Power Universal 100–240 V AC input to supplied power supply

Included

PL400e labeller, quick-start guide and universal power supply, as stated by DTM. Label rolls and the optional narrow-bag adapter are separate; check UK plug/lead supply with us before ordering.

Manual

↓ Download PL400e manual (PDF) and manufacturer specification.

FAQs

Can I label pouches after filling them?The PL400e is designed for unfilled, flat pouches. A filled pouch can have a thickness and shape that prevents the required feed and alignment.

Can I put a label on both sides?DTM describes front and back pouch labelling, but its specification lists one label per feed. We would check the second-pass setup for your pouch rather than promise both sides in a single pass.

Will zip closures or valves cause trouble?DTM lists compatible pouches with zips, hanging holes and aroma valves, but their position and thickness matter. Send us a sample or photographs and measurements if your pouch is unusual.

What if my pouch is narrower than 81 mm?The standard published minimum width is 81 mm. A separate narrow-bag adapter is listed; we can confirm suitability and price for your pouch with DTM.

Does the PL400e print the labels?No. It applies compatible pre-printed labels from a roll; the label printing step is separate.

Delivery & Returns

Delivery

DTM dispatches the machine from Germany to BatchPoint in London; this first leg normally takes about 5–7 working days, subject to availability and customs clearance. We then arrange onward delivery to your UK address. We will confirm the full delivery estimate and charge for your order before it is accepted. Please tell us if you have a production deadline.

Delivery estimates are a guide. See our Delivery Information for the general arrangements.

Returns and cancellations

Please speak to us before cancelling or returning a machine. Because the right setup depends on your package and label, we recommend checking these details before ordering. Change-of-mind returns for business purchases require our written agreement; your applicable statutory rights are unaffected. If a delivery arrives damaged or incorrect, contact BatchPoint promptly with your order details and photographs, and retain the packaging. See our Returns and Cancellations policy for the full process.

Warranty & Support

Manufacturer warranty

DTM provides a 12-month standard warranty for qualifying UK purchases. Register the product with DTM within 30 days of purchase to activate the free extension to 36 months, subject to DTM’s warranty terms. Keep your purchase invoice and serial number. Register your product with DTM.

Setup and support

BatchPoint is your first point of contact for setup questions and after-sales help. Email contact@batchpointequipment.com with your order number, package and label details, and photographs or a short video if something is not working as expected. We will work with DTM’s technical team where needed and confirm the next steps for any inspection or repair before you ship the machine.

DTM’s manuals and support resources can help with loading labels and routine troubleshooting.

See it in action!

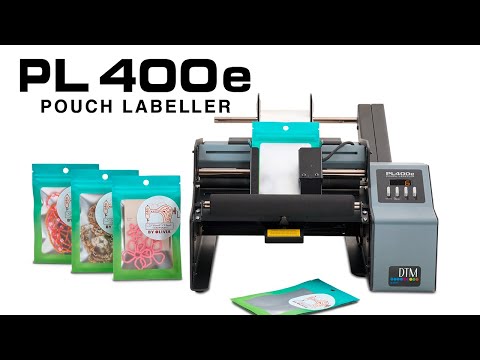

PL400e pouch labeller in action

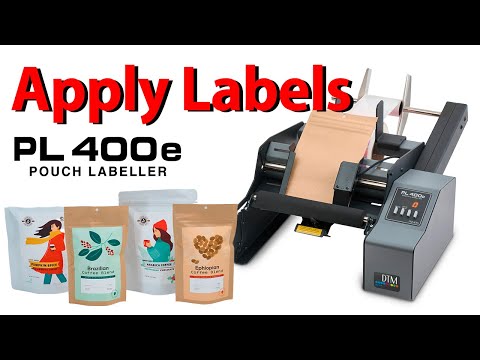

PL400e setup and first label
