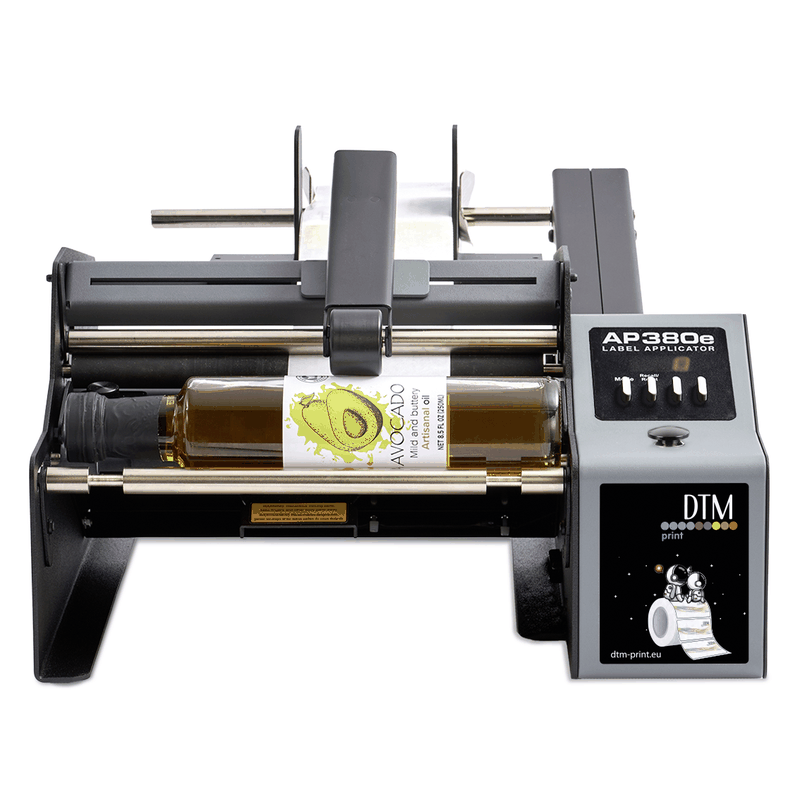

DTM AP380e front and back bottle label applicator with avocado oil bottle

DTM AP380e Front and Back Bottle Label Applicator

by DTM Print
Sold out
£1,830.90
SKU 074192DTM

Notify me when back in stock

When a bottle needs a front label and a separate back label, placing both by hand takes care on every item. The AP380e applies one or two labels to a compatible round container in a single cycle, with adjustable spacing between a front and back pair.

It also adds a built-in waste-liner rewinder, a push button alongside the footswitch, and a display with a counter and saved settings. It is the AP-Series step-up for repeat batches where tidy handling and consistent label placement matter.

Overview

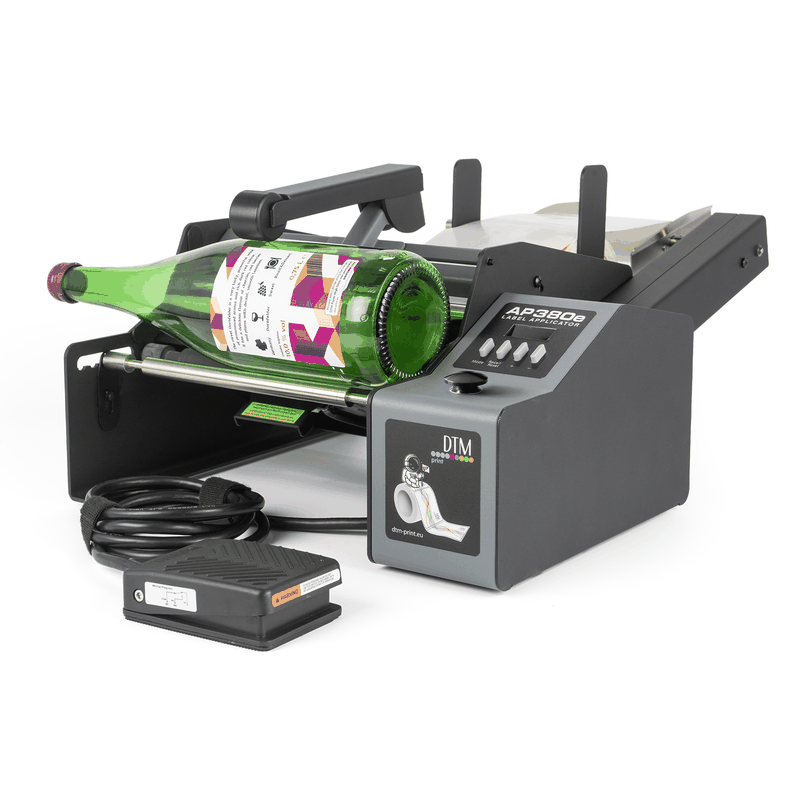

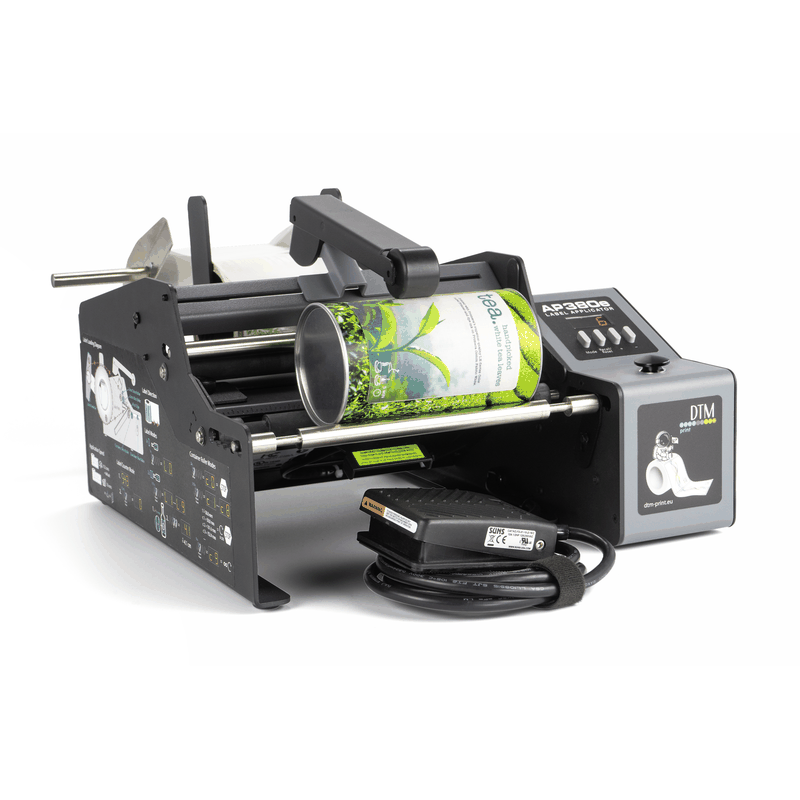

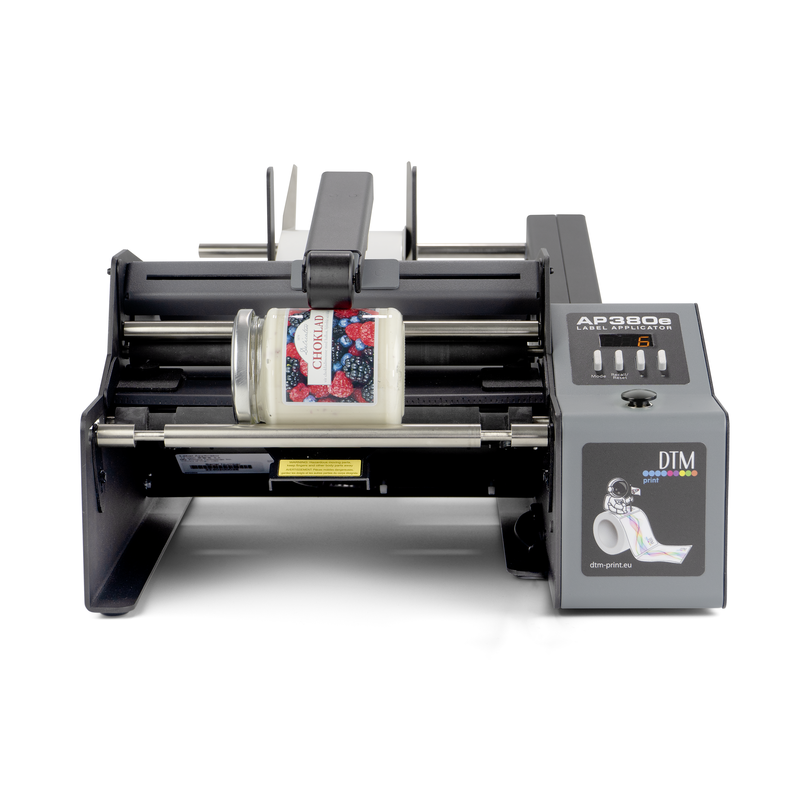

The AP380e is a semi-automatic roll-label applicator for cylindrical bottles, jars, cans and many tapered containers. You load pre-printed die-cut labels, place each container between the rollers, then start the cycle by hand button or footswitch. The pressure arm helps the label adhere as the container turns.

What changes from the AP360e

  • Apply one label or a front and back pair per cycle, with variable spacing.
  • Wind up the used backing liner on the built-in rewinder.
  • Start by button or footswitch; use the counter and saved job settings for repeat runs.

DTM quotes up to 1,500 containers per hour in suitable conditions. This is a manual-feed machine: the operator still places and removes each container.

Choose Setup

Choose the AP380e if separate front and back labels, liner handling or repeat job settings matter in your workflow. For one label per bottle and a simpler setup, the AP360e may be sufficient. Neither machine prints labels.

Check the complete application

Tell us the container diameter and length, its taper or unusual features, both label dimensions, the gap between front and back artwork on the roll, and the roll core/winding direction. Front and back labels must be supplied in a suitable sequence on compatible roll stock. The container surface and the stiffness of the label material can affect the finish; we can check a sample application with DTM if needed.

Specs & Included
Specification Manufacturer information
Container Cylindrical and many tapered; 15–170 mm diameter
Container length across rollers 25.4–238 mm
Label dimensions 19–209 mm width; 19–609.6 mm length
Label roll Up to 203 mm outer diameter; 50.8–76.2 mm core; outward wound, die-cut
Operation One or two labels per cycle; hand button or footswitch; quoted up to 1,500 containers/hour
Liner rewinder Integrated waste-liner rewinder
Machine size / weight 340 × 226 × 508 mm (W × H × D); 9.07 kg
Power Universal 100–240 V AC input to supplied power supply

Included

DTM AP380e applicator, instructions and universal power supply, as stated by DTM. Pre-printed labels are separate; check UK plug/lead supply with us before ordering.

Manual

↓ Download AP380e manual (PDF) and DTM’s technical specification.

FAQs

Can I apply just one label?Yes. The AP380e can dispense one label or a front and back pair per cycle, depending on the setup and label roll.

Does it use two separate rolls for front and back?No. Check how the front and back labels are arranged on the compatible roll; send us the artwork and roll details if you want us to verify the setup.

What does the liner rewinder do?It winds the spent backing paper after the labels have been removed. It does not print or rewind finished labels from a printer.

Will it label a tapered or unusually shaped bottle?Many tapered containers can work, but label shape and material matter. Send us dimensions and photographs so we can check the application before you order.

Is the quoted speed my likely hourly output?The figure is DTM’s maximum under suitable conditions. Loading, removing and changing containers or rolls will affect your actual rate.

Delivery & Returns

Delivery

DTM dispatches the machine from Germany to BatchPoint in London; this first leg normally takes about 5–7 working days, subject to availability and customs clearance. We then arrange onward delivery to your UK address. We will confirm the full delivery estimate and charge for your order before it is accepted. Please tell us if you have a production deadline.

Delivery estimates are a guide. See our Delivery Information for the general arrangements.

Returns and cancellations

Please speak to us before cancelling or returning a machine. Because the right setup depends on your container and label, we recommend checking these details before ordering. Change-of-mind returns for business purchases require our written agreement; your applicable statutory rights are unaffected. If a delivery arrives damaged or incorrect, contact BatchPoint promptly with your order details and photographs, and retain the packaging. See our Returns and Cancellations policy for the full process.

Warranty & Support

Manufacturer warranty

DTM provides a 12-month standard warranty for qualifying UK purchases. Register the product with DTM within 30 days of purchase to activate the free extension to 36 months, subject to DTM’s warranty terms. Keep your purchase invoice and serial number. Register your product with DTM.

Setup and support

BatchPoint is your first point of contact for setup questions and after-sales help. Email contact@batchpointequipment.com with your order number, container and label details, and photographs or a short video if something is not working as expected. We will work with DTM’s technical team where needed and confirm the next steps for any inspection or repair before you ship the machine.

DTM’s manuals and support resources can help with loading labels, positioning the container and routine troubleshooting.

See it in action!

AP380e in operation with matrix rewinding

AP380e unboxing and setup
