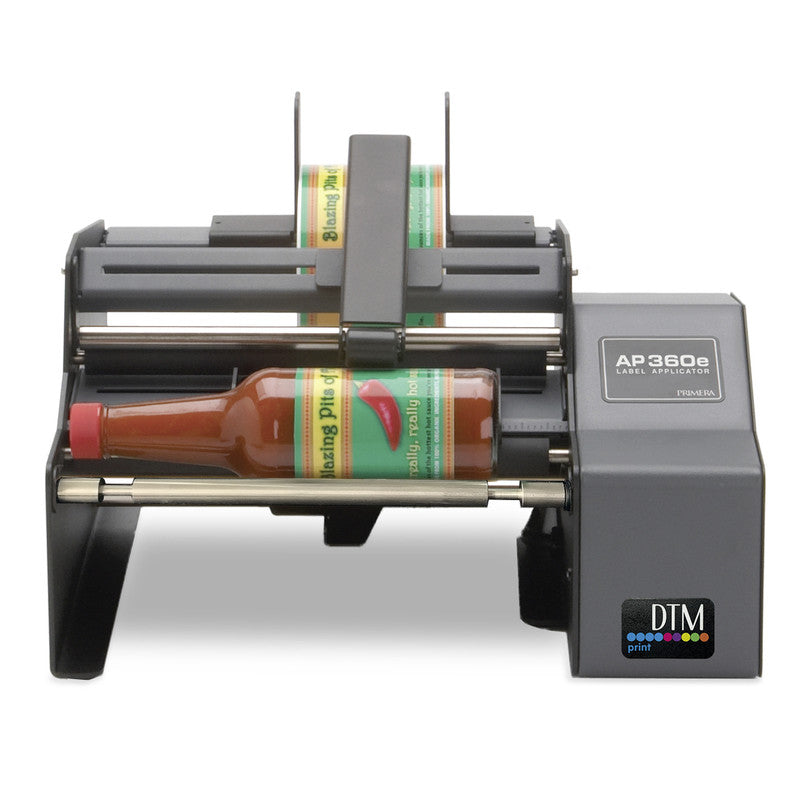

DTM AP360e round bottle label applicator with a hot sauce bottle, front view

DTM AP360e Round Bottle Label Applicator

by DTM Print
Sold out
£1,524.90
SKU 074292

Notify me when back in stock

Hand-applying labels to every bottle or jar takes time, and keeping each one straight is difficult across a full batch. The AP360e uses a roll of pre-printed labels and turns the container as it applies one label when you press the footswitch.

It is the straightforward AP-Series choice for a single front label or a wraparound label on compatible cylindrical containers. You place and remove each container yourself; the machine applies the label. If you need separate front and back labels in one cycle, consider the AP380e.

Overview

The AP360e is a benchtop, semi-automatic applicator for bottles, jars, cans and other compatible round containers. Adjustable guides and a pressure arm help position the container and press the label down consistently. It applies a pre-printed pressure-sensitive label; it does not print or design labels.

How a labelling cycle works

  1. Load a compatible outward-wound, die-cut label roll and set the label guides.
  2. Position the container between the rollers and adjust the pressure arm.
  3. Press the footswitch to apply one label as the container rotates.
  4. Remove the labelled container and present the next one.

DTM quotes up to 1,200 containers per hour; actual output depends on container handling, label size and changeovers. The AP360e has no built-in waste-liner rewinder.

Choose Setup

Choose the AP360e if you apply one label per container and want a compact upgrade from labelling by hand. Choose the AP380e if you need a front and back label in one cycle, a built-in liner rewinder, a hand start button or a job counter.

Check your bottle and labels before ordering

Measure your container diameter and the area that will carry the label. Check the label’s width, length, roll core and winding direction. Cylindrical containers are the natural fit; many tapered containers can work, but a pronounced taper or an unusual shape may need a sample test. Send us a photograph and dimensions of the container and label if you are unsure.

Compatible rolls can be printed by DTM or another label supplier. The applicator requires roll-fed, die-cut, pressure-sensitive labels, not loose sheets.

Specs & Included
Specification Manufacturer information
Container Cylindrical and many tapered; 15–170 mm diameter
Container length across rollers 25.4–238 mm
Label dimensions 19–209 mm width; 19–609.6 mm length
Label roll Up to 203 mm outer diameter; 50.8–76.2 mm core; outward wound, die-cut
Operation One label per footswitch activation; quoted up to 1,200 containers/hour
Liner rewinder Not built in
Machine size / weight 340 × 226 × 328 mm (W × H × D); 7.26 kg
Power Universal 100–240 V AC input to supplied power supply

Included

AP360e applicator, instructions and universal power supply, as stated by DTM. A pre-printed label roll is not included; check UK plug/lead supply with us before ordering.

Manual

↓ Download AP-Series manual (PDF). For detailed media requirements, see DTM’s technical specification.

FAQs

Does the AP360e print labels?No. It applies labels supplied on a compatible pre-printed roll. Printing labels in-house would require a separate printer and suitable media.

Can it apply separate front and back labels in one cycle?No. It dispenses one label per activation. The AP380e is the model to consider for a front and back pair.

Can I use a tapered bottle?Many tapered containers are supported, but the shape and label material affect how flat the label sits. Send us a container photo and dimensions so we can check suitability with DTM.

What happens to the backing paper?The AP360e does not have a built-in liner rewinder. Leave space for the spent liner to feed away safely during the run.

Will clear or flexible labels work?DTM lists clear labels as usable. Very flexible films or slippery/thin liners can still affect feeding and finish, so ask us to check your actual stock if it is unusual.

Delivery & Returns

Delivery

DTM dispatches the machine from Germany to BatchPoint in London; this first leg normally takes about 5–7 working days, subject to availability and customs clearance. We then arrange onward delivery to your UK address. We will confirm the full delivery estimate and charge for your order before it is accepted. Please tell us if you have a production deadline.

Delivery estimates are a guide. See our Delivery Information for the general arrangements.

Returns and cancellations

Please speak to us before cancelling or returning a machine. Because the right setup depends on your container and label, we recommend checking these details before ordering. Change-of-mind returns for business purchases require our written agreement; your applicable statutory rights are unaffected. If a delivery arrives damaged or incorrect, contact BatchPoint promptly with your order details and photographs, and retain the packaging. See our Returns and Cancellations policy for the full process.

Warranty & Support

Manufacturer warranty

DTM provides a 12-month standard warranty for qualifying UK purchases. Register the product with DTM within 30 days of purchase to activate the free extension to 36 months, subject to DTM’s warranty terms. Keep your purchase invoice and serial number. Register your product with DTM.

Setup and support

BatchPoint is your first point of contact for setup questions and after-sales help. Email contact@batchpointequipment.com with your order number, container and label details, and photographs or a short video if something is not working as expected. We will work with DTM’s technical team where needed and confirm the next steps for any inspection or repair before you ship the machine.

DTM’s manuals and support resources can help with loading labels, positioning the container and routine troubleshooting.

See it in action!

This video demonstrates both the AP360e and AP362e. Setup and operation are similar, but the AP360e applies one label per container, while the AP362e can apply separate front and back labels. This product page is for the AP360e.
