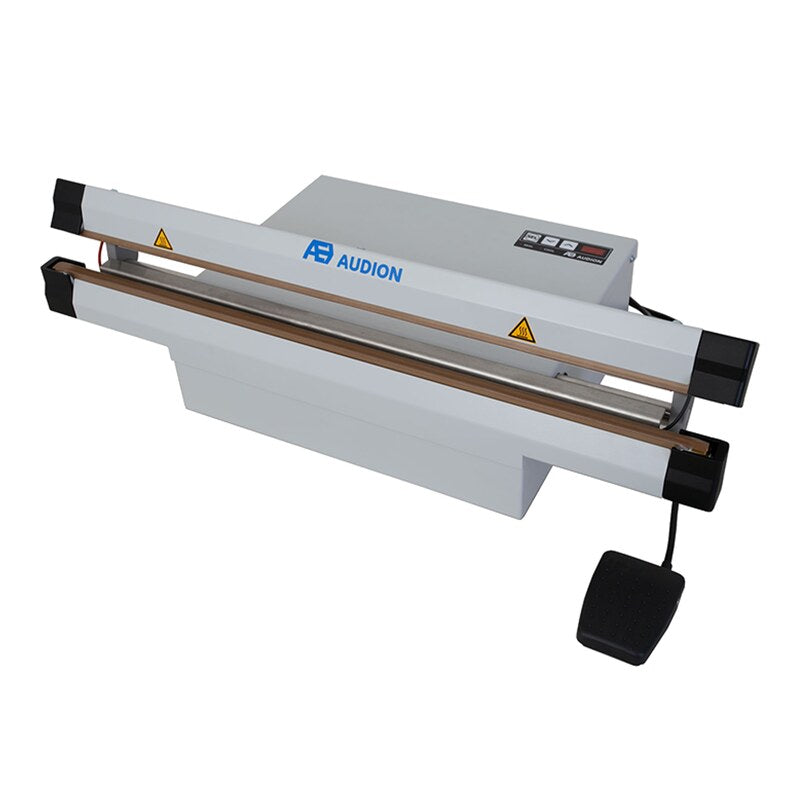

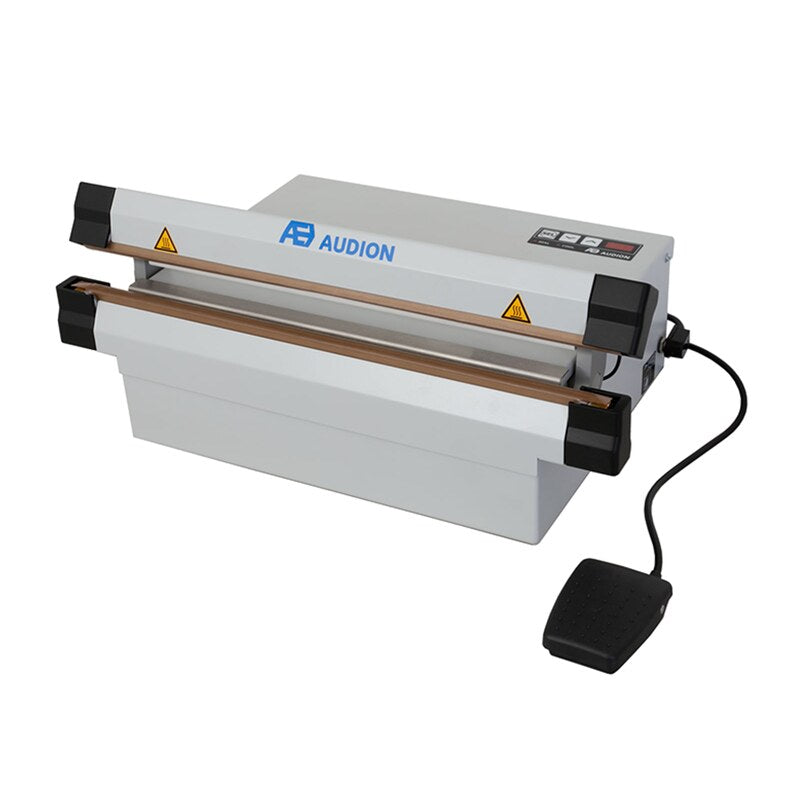

Audion Industrial Sealmaster ISM 420 impulse sealer

Audion Industrial Sealmaster ISM Heavy-Duty Impulse Sealer

by Audion
Sold out
£2,270.00
SKU 420 ISM-2
Seal length
Cutter

Notify me when back in stock

The Audion Industrial Sealmaster ISM is a heavy-duty, bi-active impulse sealer for demanding production use. Both sealing bars are heated for strong, consistent 5 mm seals, while digital seal and cooling controls help operators repeat proven settings across shifts and pack formats.

Choose 420, 620 or 1020 mm sealing length, with or without an integrated cutter. The electrically driven mechanism needs no compressed air.

Overview

Built for demanding seal cycles

  • Bi-active heating applies heat from both jaws for reliable sealing of thicker materials.
  • Digital sealing and cooling-time control supports repeatable results.
  • Electrical foot operation keeps both hands free and removes the need for compressed air.
  • Knife-equipped ISMK variants cut tubular film or trim material immediately after sealing.
Choose Setup

Length, cutter and mounting

Select a sealing length wider than the complete bag mouth. Choose the integrated cutter for tubular film or regular trimming work; select the standard ISM when sealing ready-made bags without cutting.

  • 420 mm: compact packs and workspaces.
  • 620 mm: versatile mid-size production work.

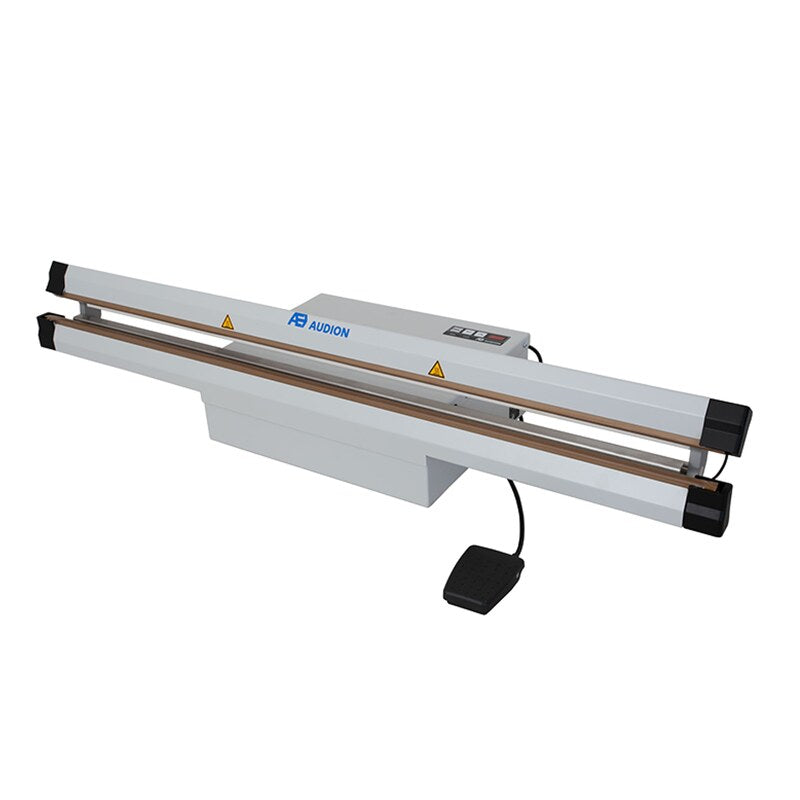

  • 1020 mm: wide sacks, liners and industrial packs.

The current epoxy-finished range is listed here. If your wash-down process calls for an IP65 stainless model, ask us to check the latest specification and availability.

Specs & Included
Seal 5 mm bi-active impulse seal
Seal lengths 420 / 620 / 1020 mm
Film capacity Up to 2 × 200 micron, material dependent
Power 230 V, 1 phase, 50/60 Hz
Controls Digital seal and cooling timers
Operation Electrical foot pedal; no compressed air required
Model / SKU 420 ISM-2 / 420 ISMK-2; 620 ISM-2 / 620 ISMK-2; 1020 ISM-2 / 1020 ISMK-2

Download Sealmaster technical drawing (PDF)

FAQs

Why bi-active sealing?
Heating from both jaws transfers heat efficiently through thicker or more demanding film structures.

Do I need the cutter?
Choose an ISMK cutter variant when making bags from tubular film or trimming material. Ready-made bags can usually be sealed with the standard ISM.

Which accessories fit?

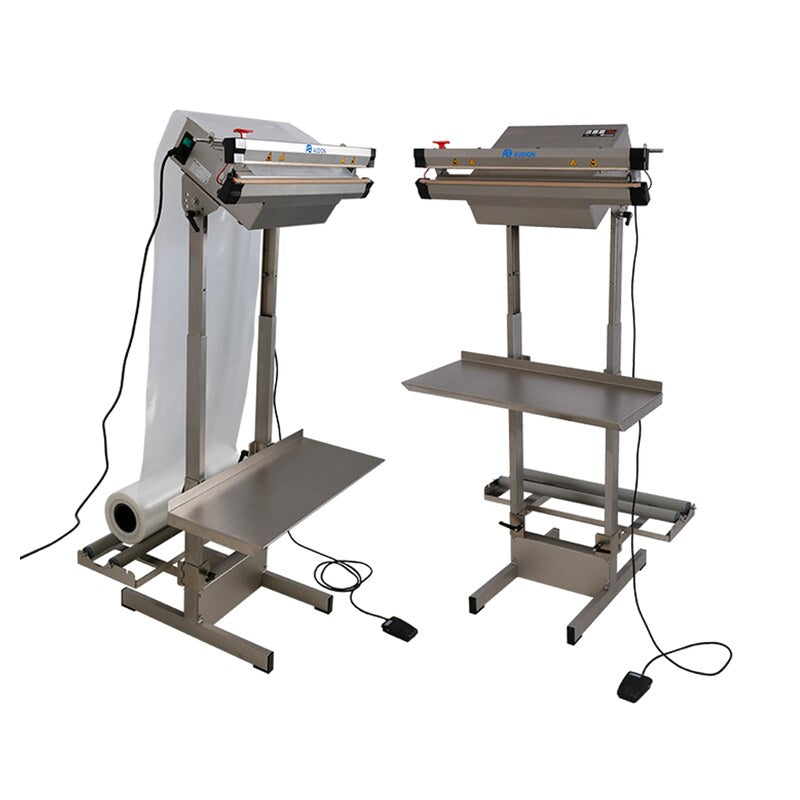

Tabletop roll holders, a compact support and a mobile industrial frame are available. Compatibility is stated on each accessory page.

Delivery & Returns

This is specialist industrial equipment. Current availability, delivery route, lead time and delivery charge are confirmed before we accept your order. Please tell us the delivery postcode and any deadline. Contact us before returning equipment; business change-of-mind returns require written agreement. Report damaged or incorrect deliveries promptly and retain all packaging.

Warranty & Support

Audion provides a 3-year machine warranty, excluding wearing parts and misuse. BatchPoint is your first point of contact for application checks, setup guidance, spares and after-sales support.
